Description
With the powerful 10-ton crimper, you could crimp wires and butt connectors easily. Much easier to use than a pair of hand crimpers. The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires, lugs and compressible battery terminal ends, and comes with a wire cutter for added convenience.
Great for battery and welding cables, power wires and electrical cables etc.
Features:
- Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters

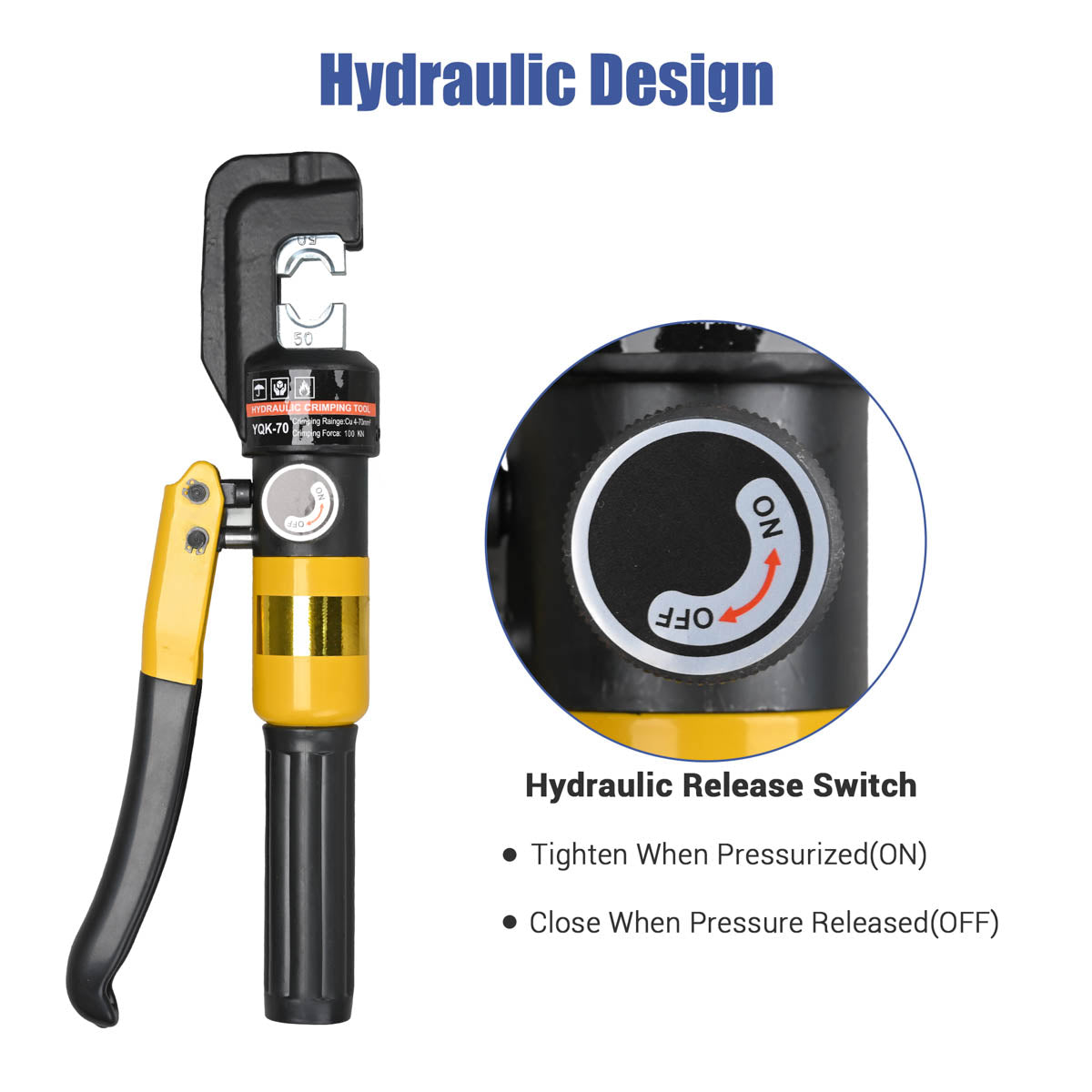

- Hydraulic Design

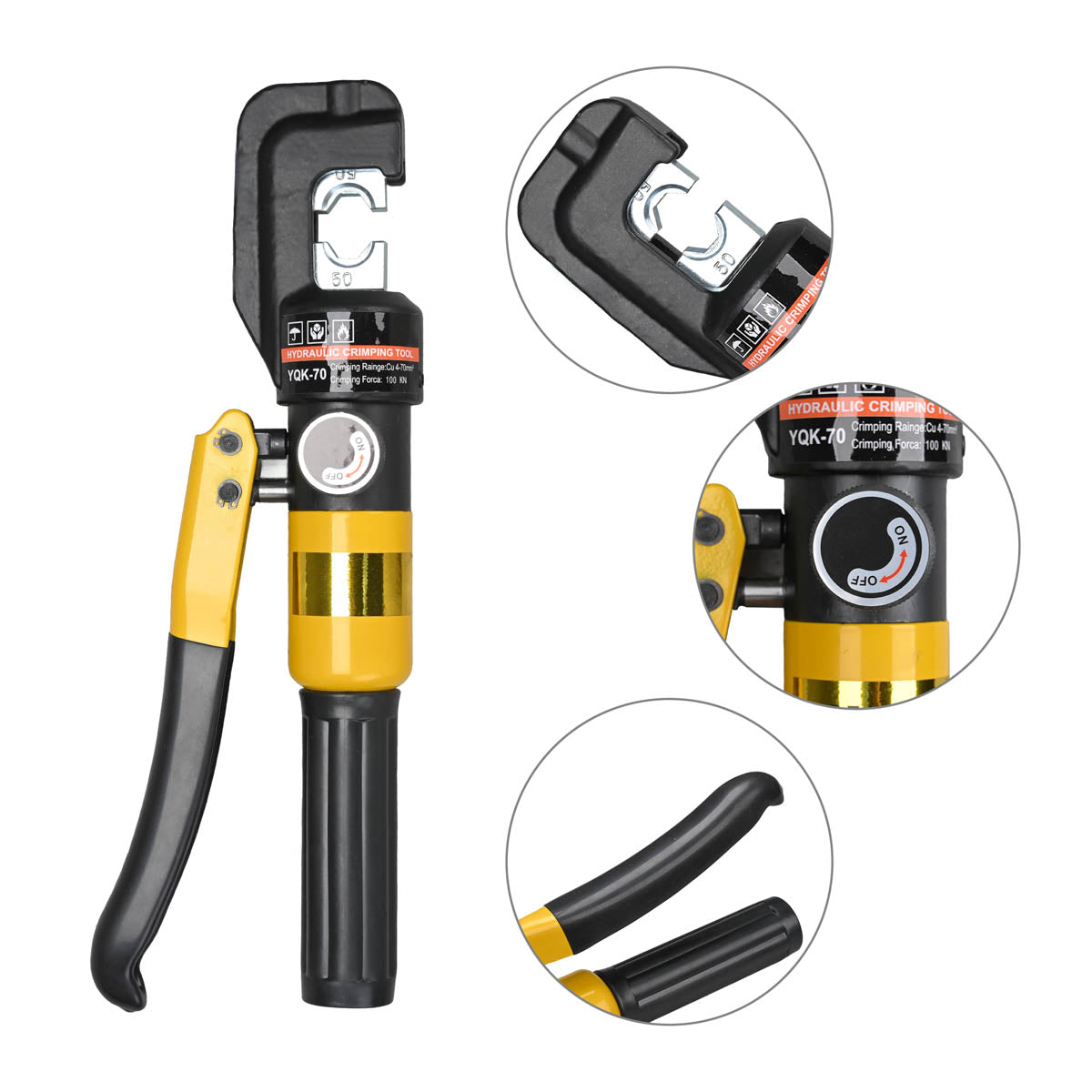

- Providing 10-ton maximum crimping power to crimp wires easily, controlled by a rotary switch knob for quick manual release, or the automatic function which releases it automatically when maximum pressure is achieved
- Hydraulic crimper is much easier than using a hand crimping

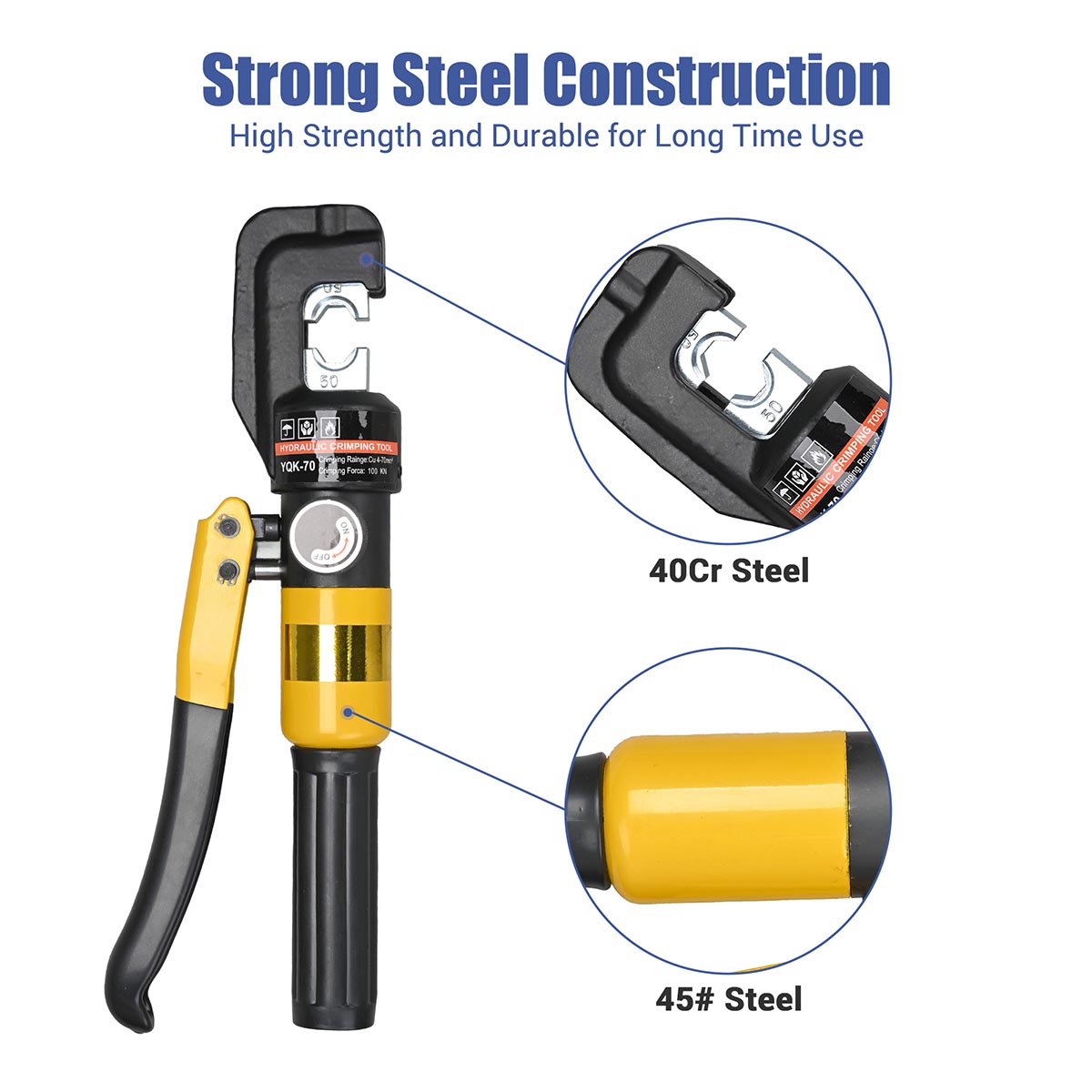

- Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with galvanized finish for high resistance against rust, corrosion, and wear-and-tear
- Convenient & Portable

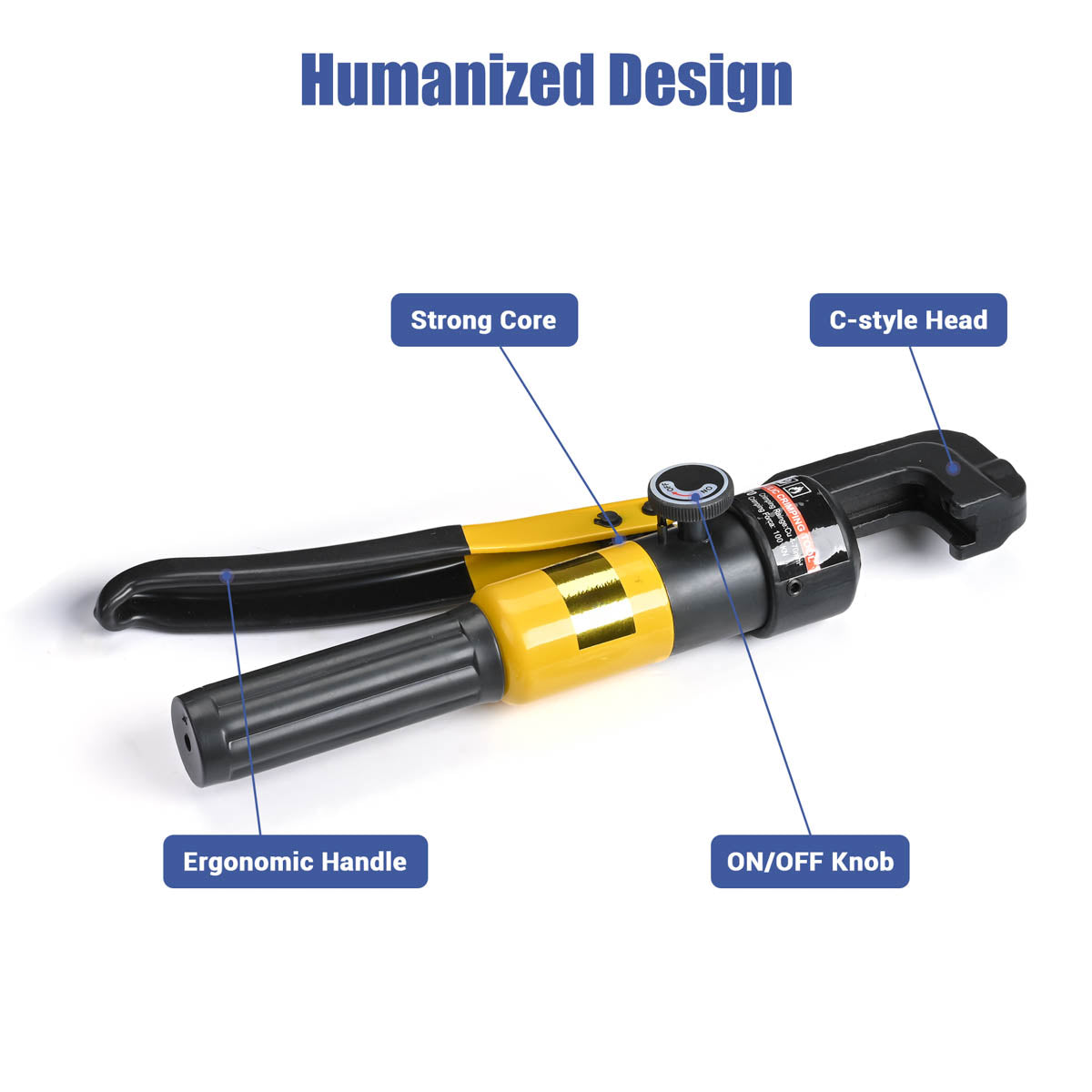

- C-style head for easy changing the dies and fixing the wire in position
- Long ergonomic handle for convenient and labor-saving operation
- Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place

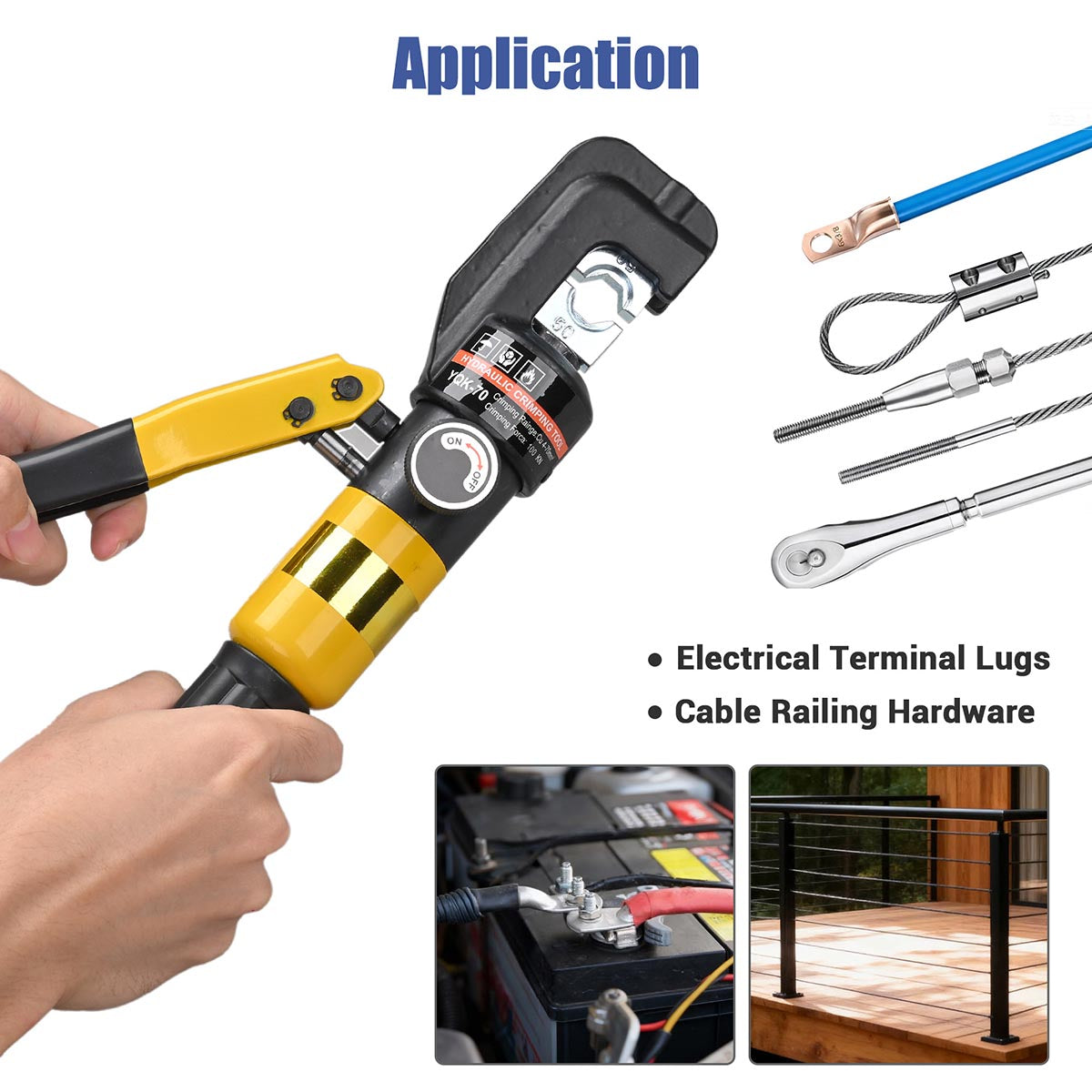

- Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire
Specification:
- Max pressure: 10 Ton

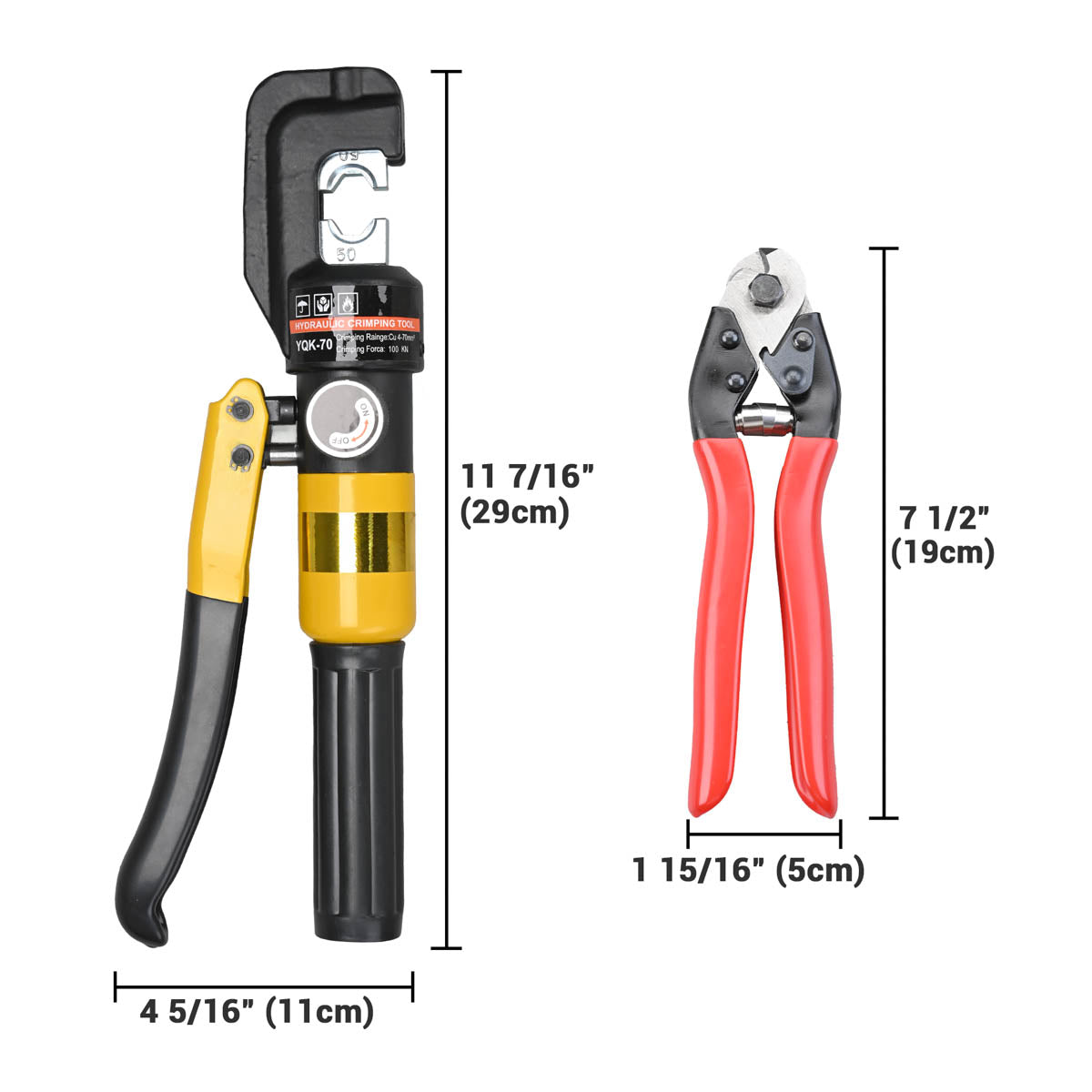

- Overall Dimension(LxWxH): 11 7/16" x 4 5/16" x 2 1/2"
- Wire Cutter Dimension(LxWxH): 7 1/2" x 1 15/16" x 7/8"

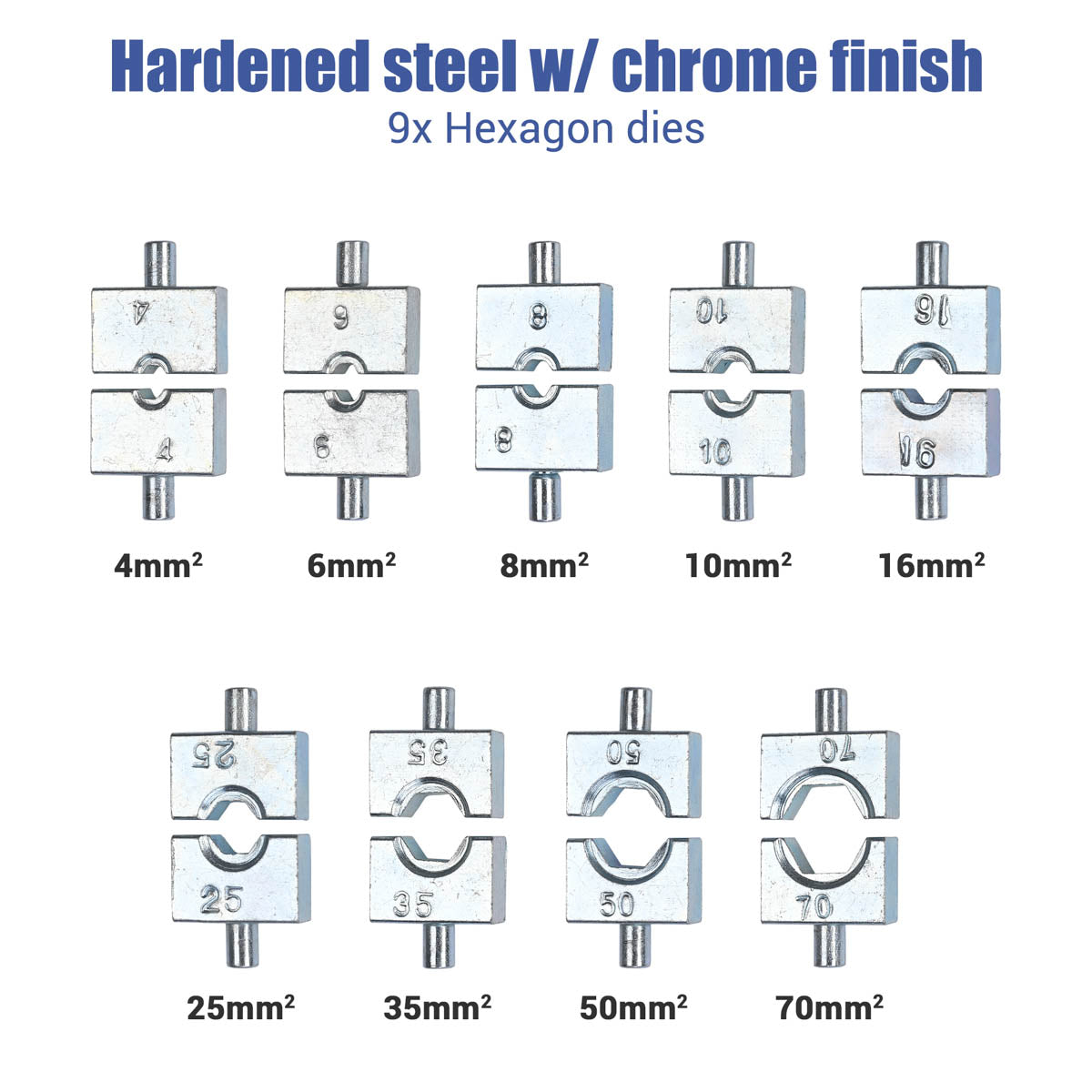

- Dies Size: 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2

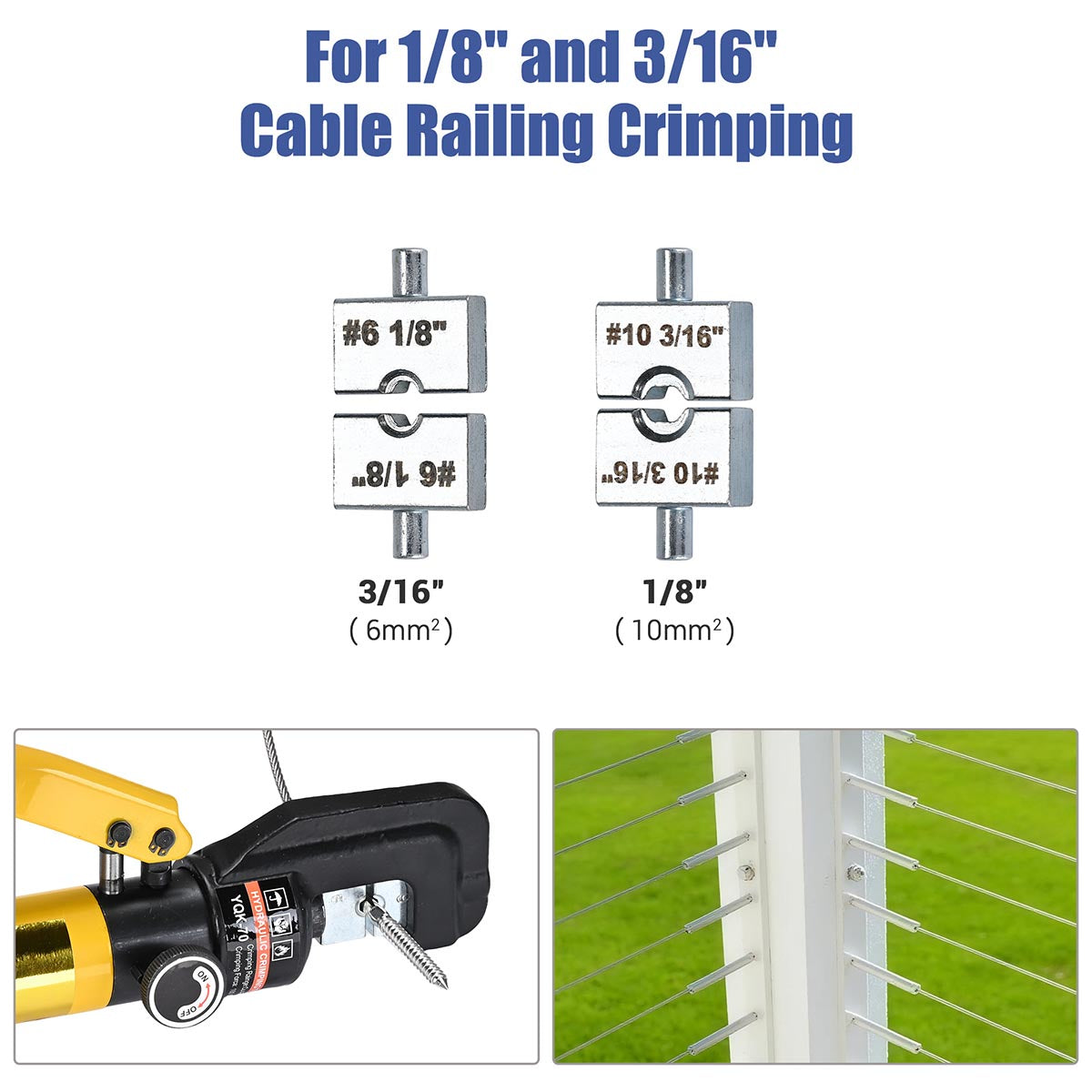

- Fits for: 1/8" to 3/16" (12 AWG to 2/0 AWG) Copper & Aluminum Wires
- Stroke Capacity: 3/8" (10mm)
- Material: 45# Steel, 40Cr Steel
- Net Weight: 6.8 Lbs
Reference:
| AWG | MM2 |
| 12 | 4 |
| 10 | 6 |
| 10 - 8 | 8 |
| 8 | 10 |
| 6 | 16 |
| 4 | 25 |
| 2 | 35 |
| 1/0 | 50 |
| 2/0 | 70 |
| 3/0 | 95 |
| 4/0 - 250 MCM | 120 |
| 300 MCM | 150 |
| 350 MCM | 185 |
| 500 MCM | 240 |
| 600 MCM | 300 |

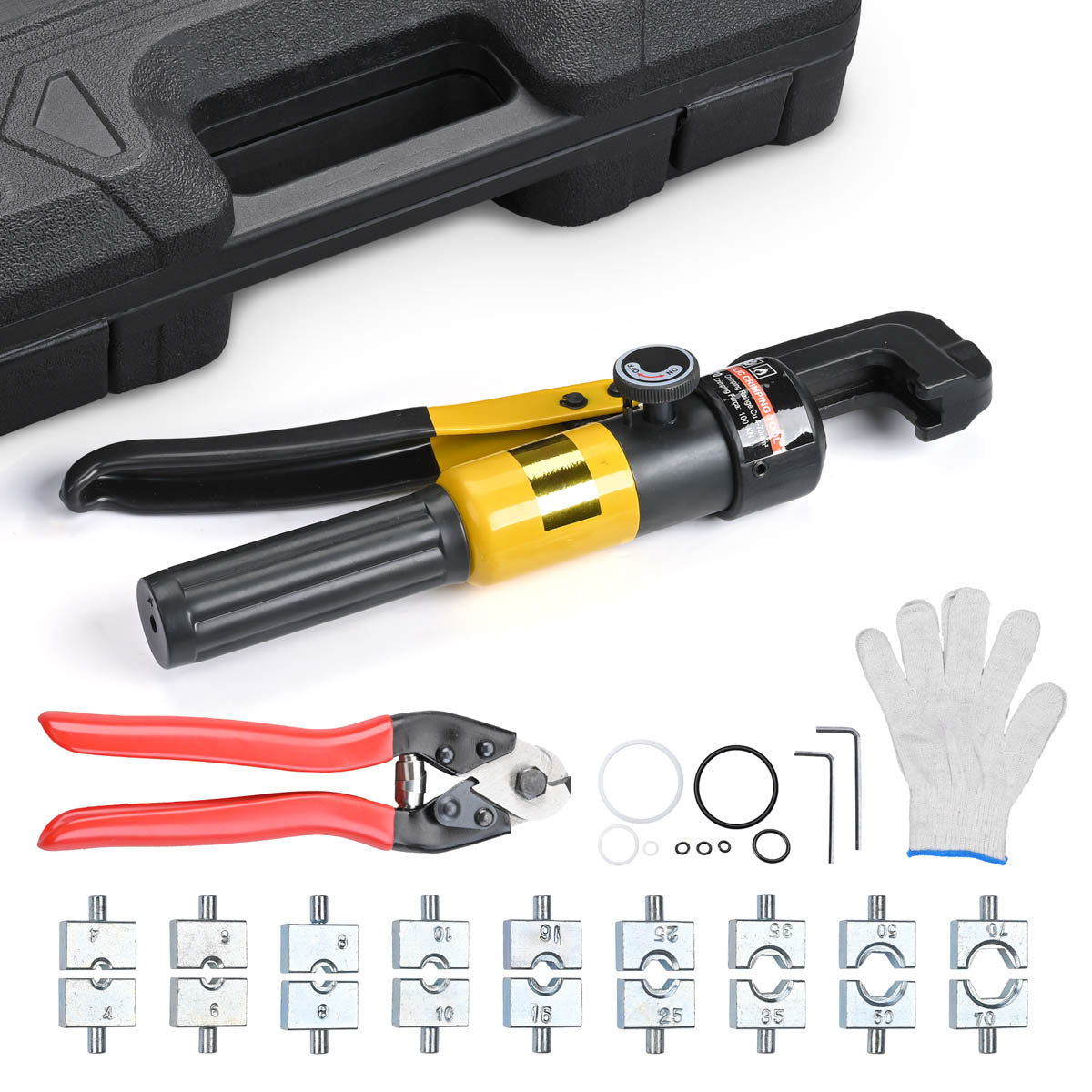

Package Includes:
- 1x Hydraulic Crimper
- 9 Pairs of Dies
- 1 Set of Seal Rings
- 1x Carry Box

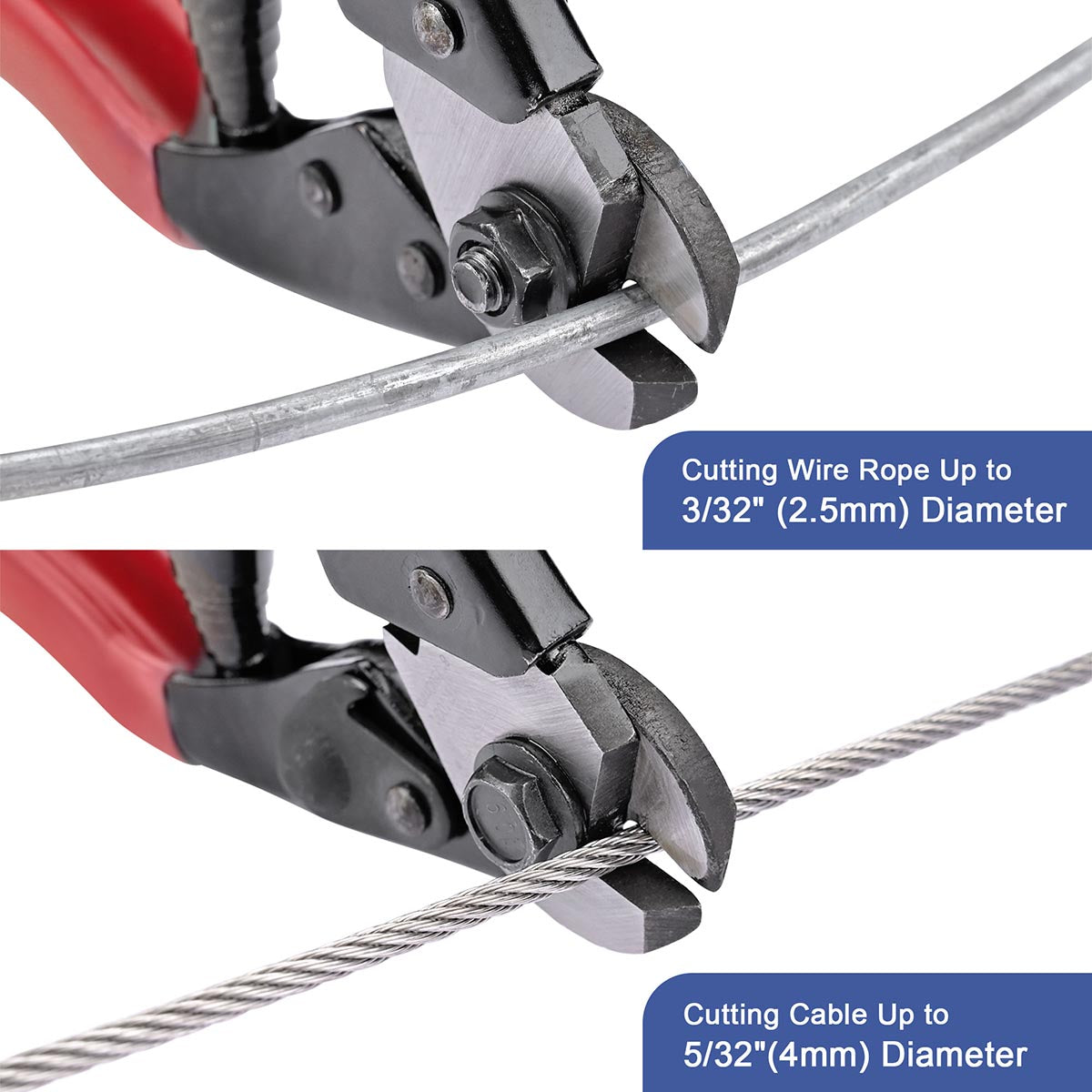

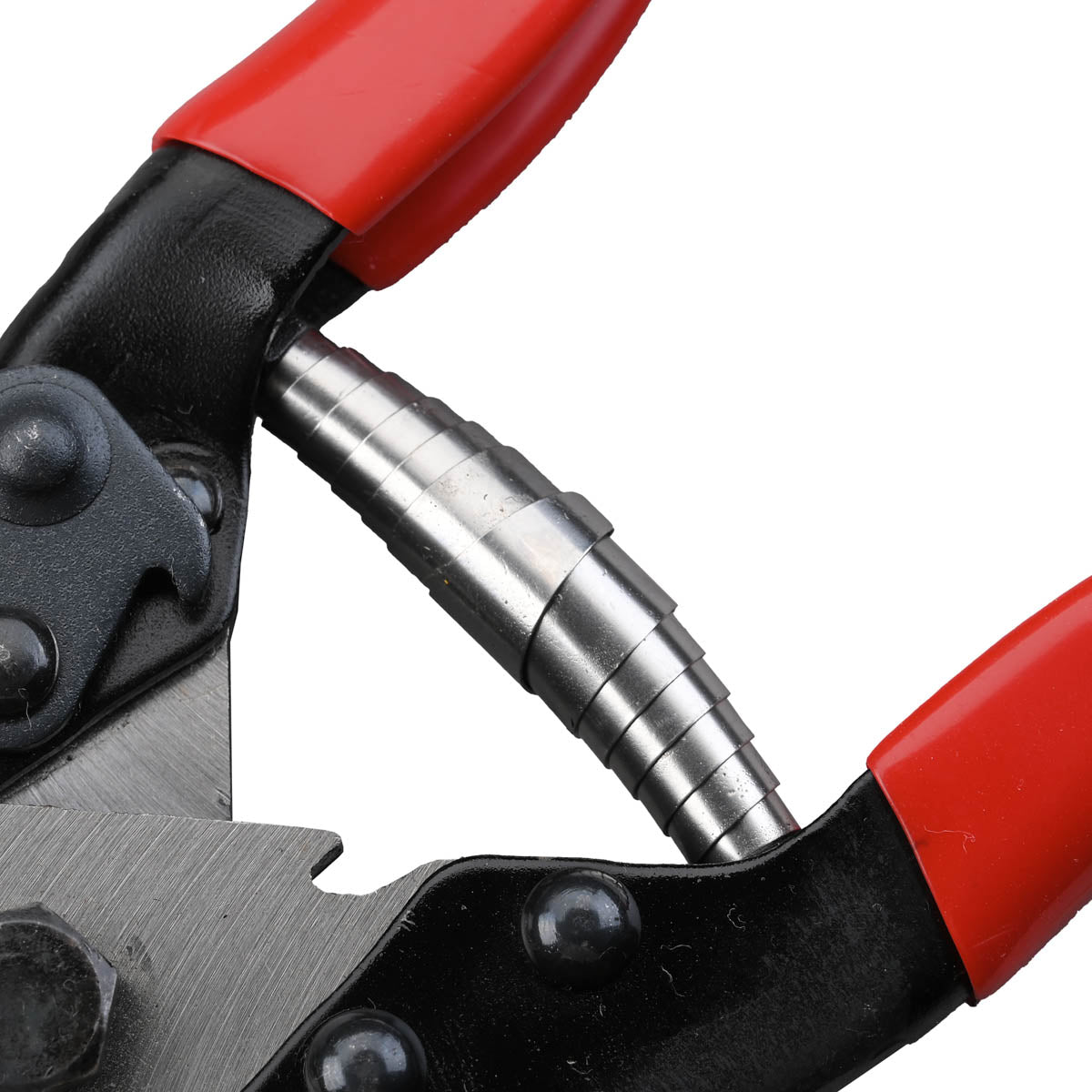

- 1x Cable Cutter
- 2x Gloves
- 2x Allen Keys
- 1x Manual
Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
