4.5 out of 5 based on 2 user ratings.

$95.99
Sku: LAS002128
Product Type: Metal Hole Punch
Metal Hole Punch
Member exclusive coupon: LASPERKS
$25 OFF on Order $200

Coupon is available after your account is successfully activated.

• Free Delivery within 3-5 business days.
• Payment Cleared before 12pm PST will be shipped out in the same business day (Pre-Orders Excepted).
30-Day Warranty & Return Policy

Throw out those old wrench-style punches and upgrade with this Brand New Complete 10-Ton Hydraulic Punch Driver Kit, even though material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!

Here is the listing for Color Option: Yellow/ Red

Features:

  • 6 Dies & Punches Interchangeable to Meet Different Needs

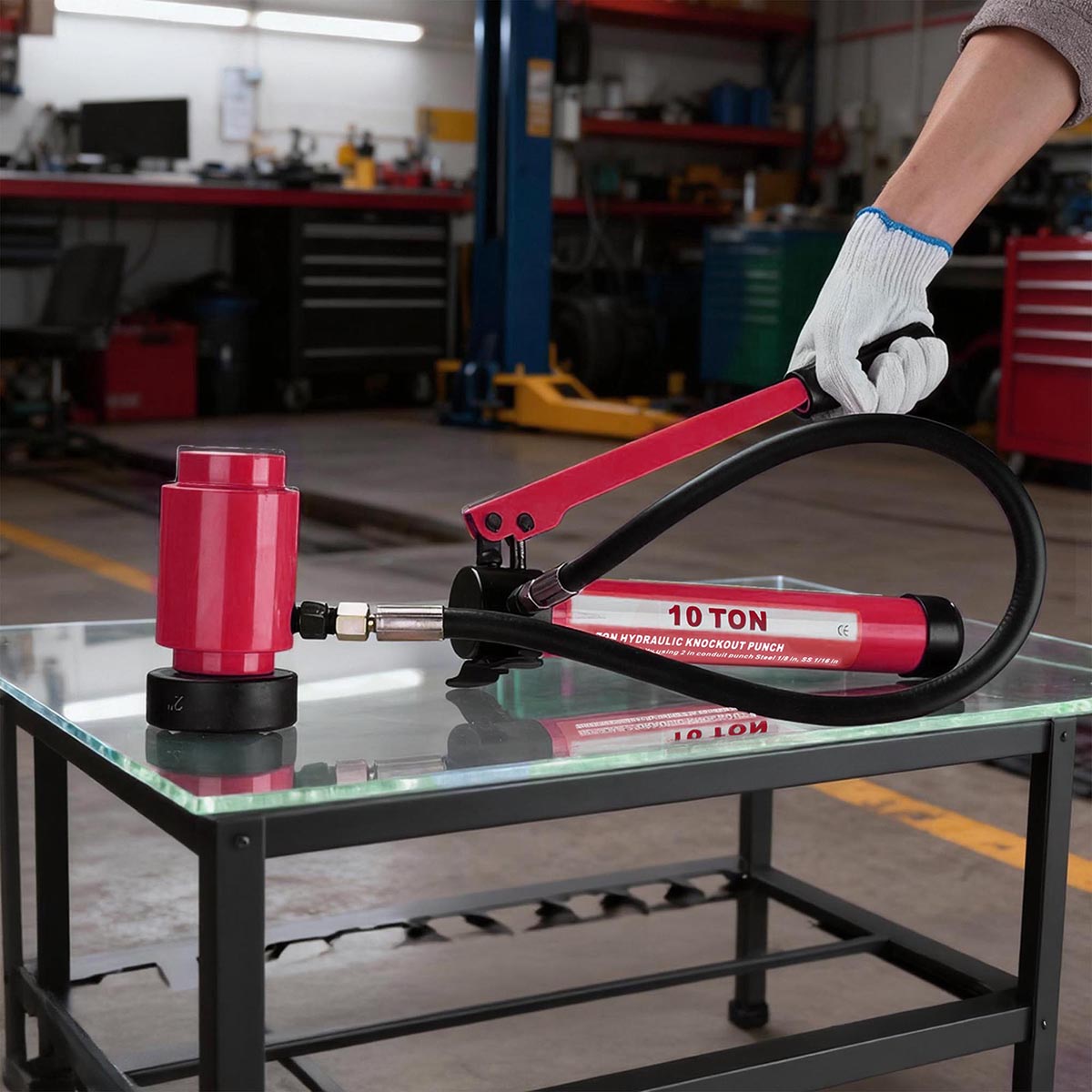

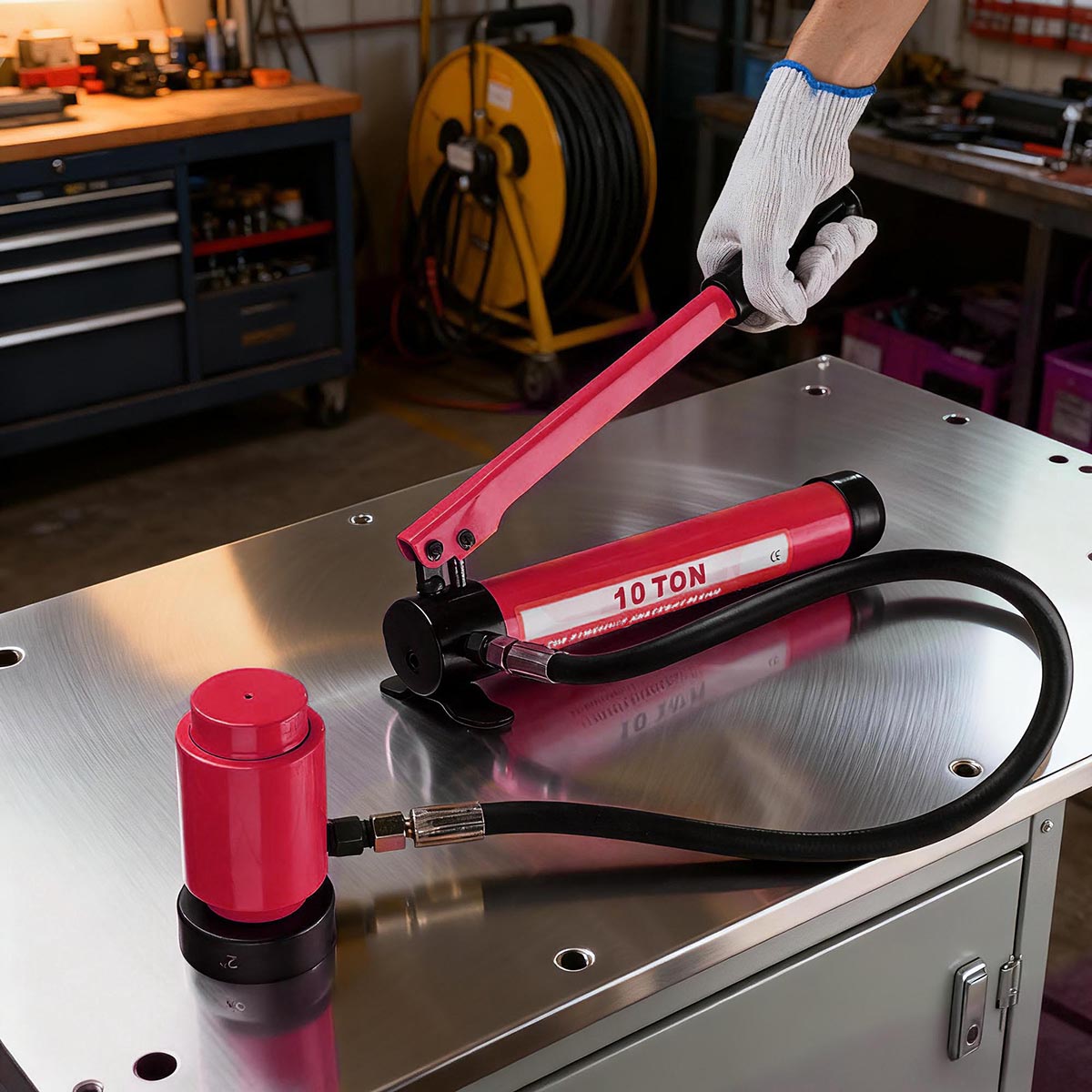

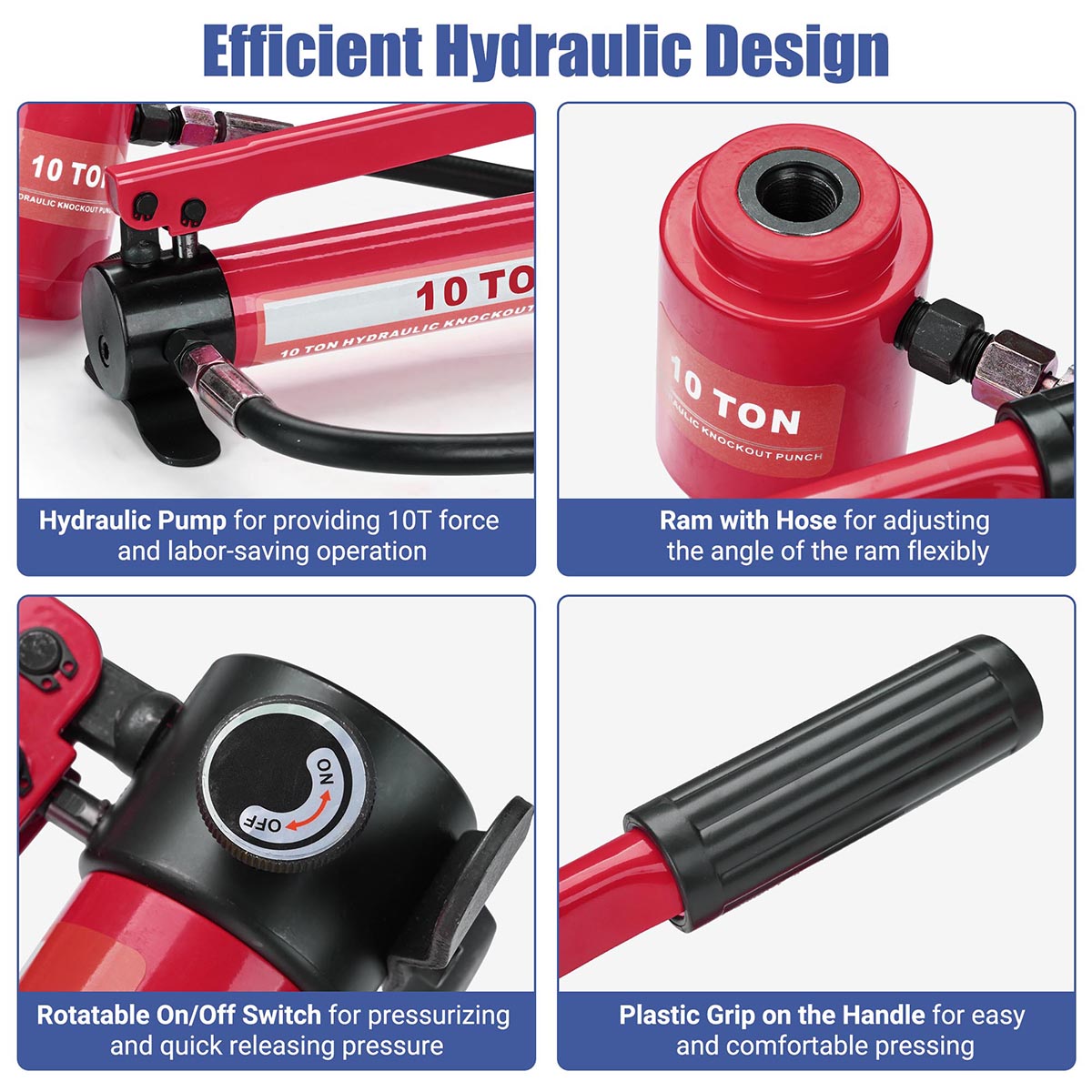

  • Efficient Hydraulic Design
    • Hydraulic mechanism pump produces 10T strong pressure for providing high punching accuracy and fast punching speed on punching uniform holes, more labor-saving and faster

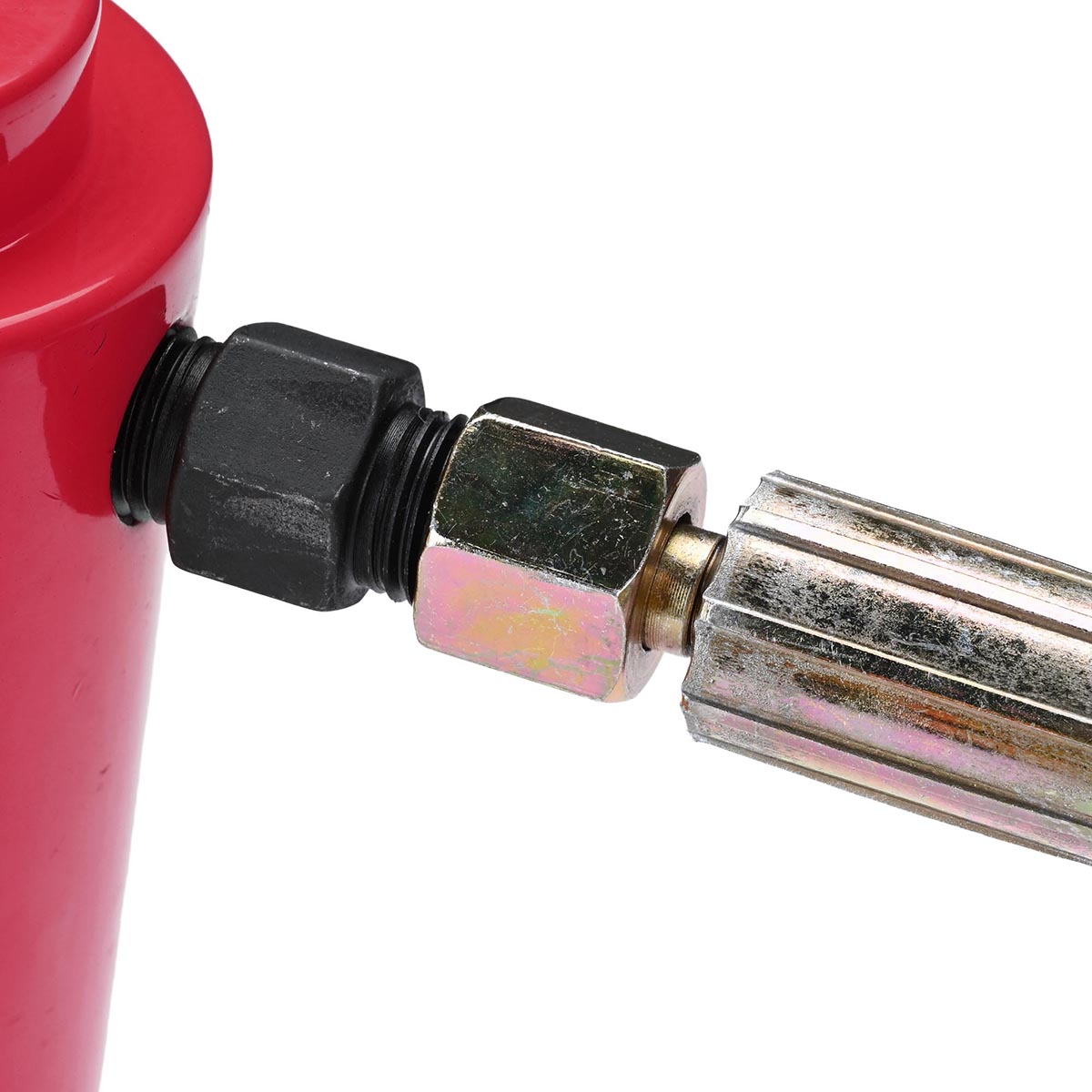

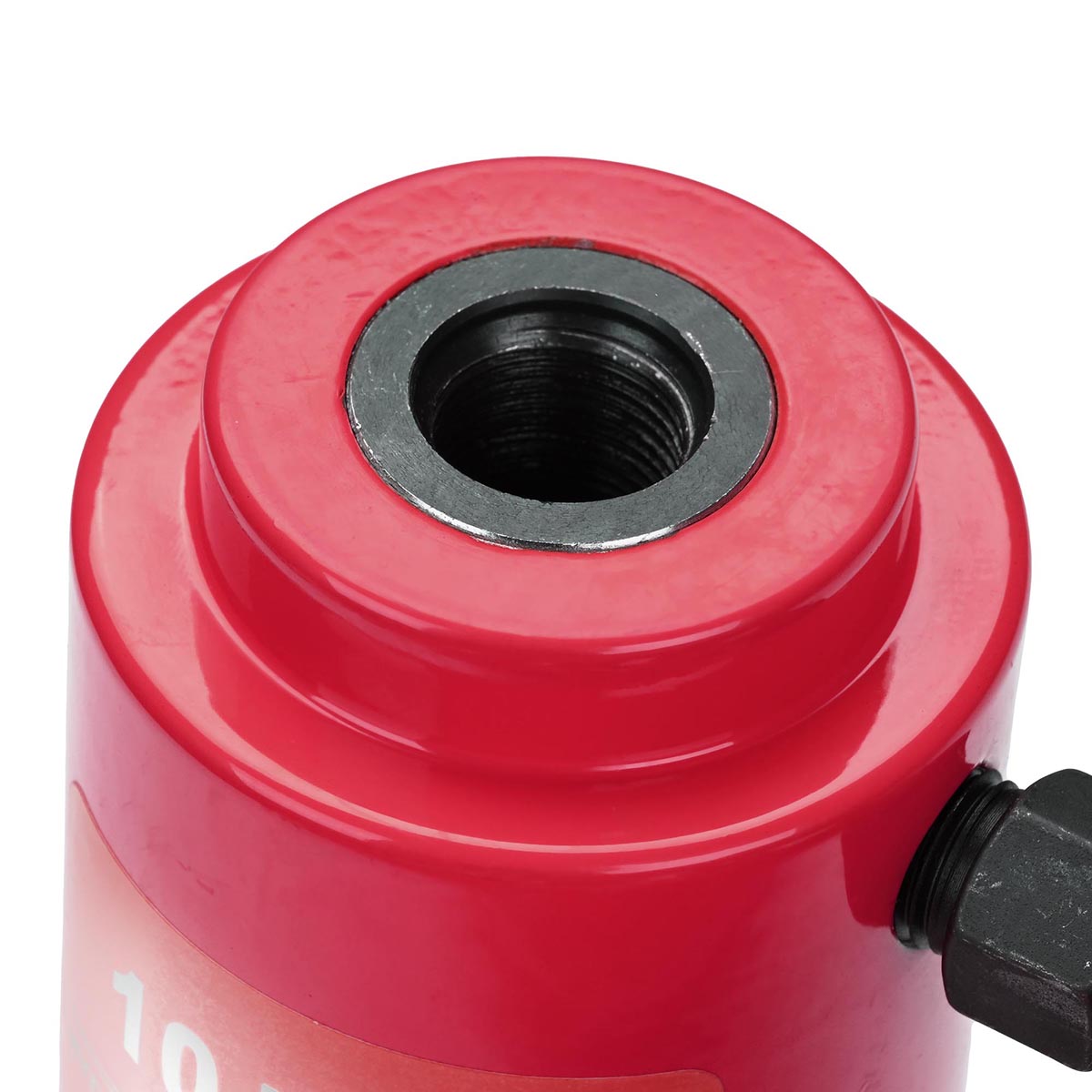

    • Pump with pressure hose for adjusting the angle of the ram flexibly
  • 40Cr steel dies and steel pump body for ensuring high strength, sturdiness and durability, stable construction

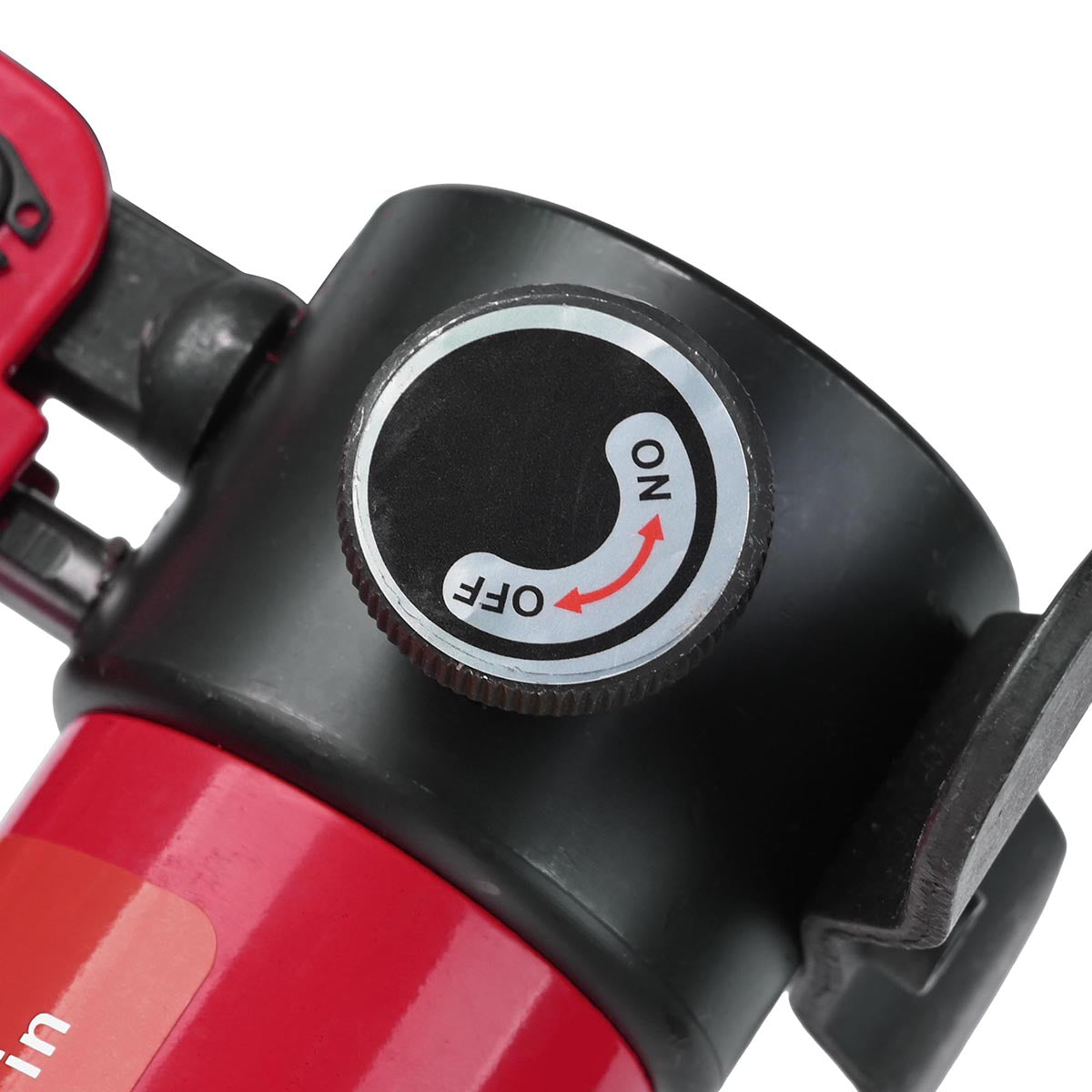

  • Rotatable "on/off " knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value

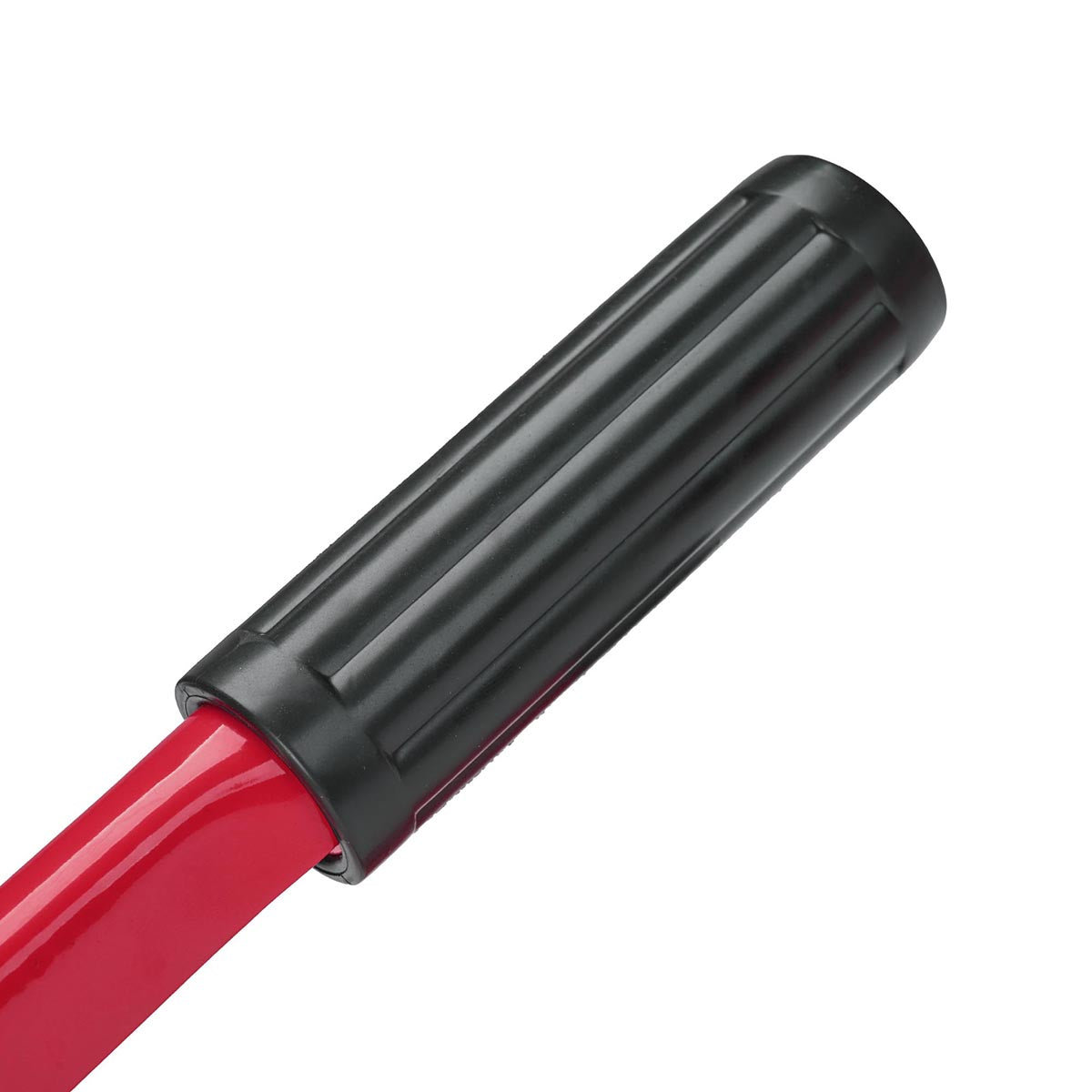

  • Anti-skid plastic grip at the end of the handle for easy and comfortable pressing

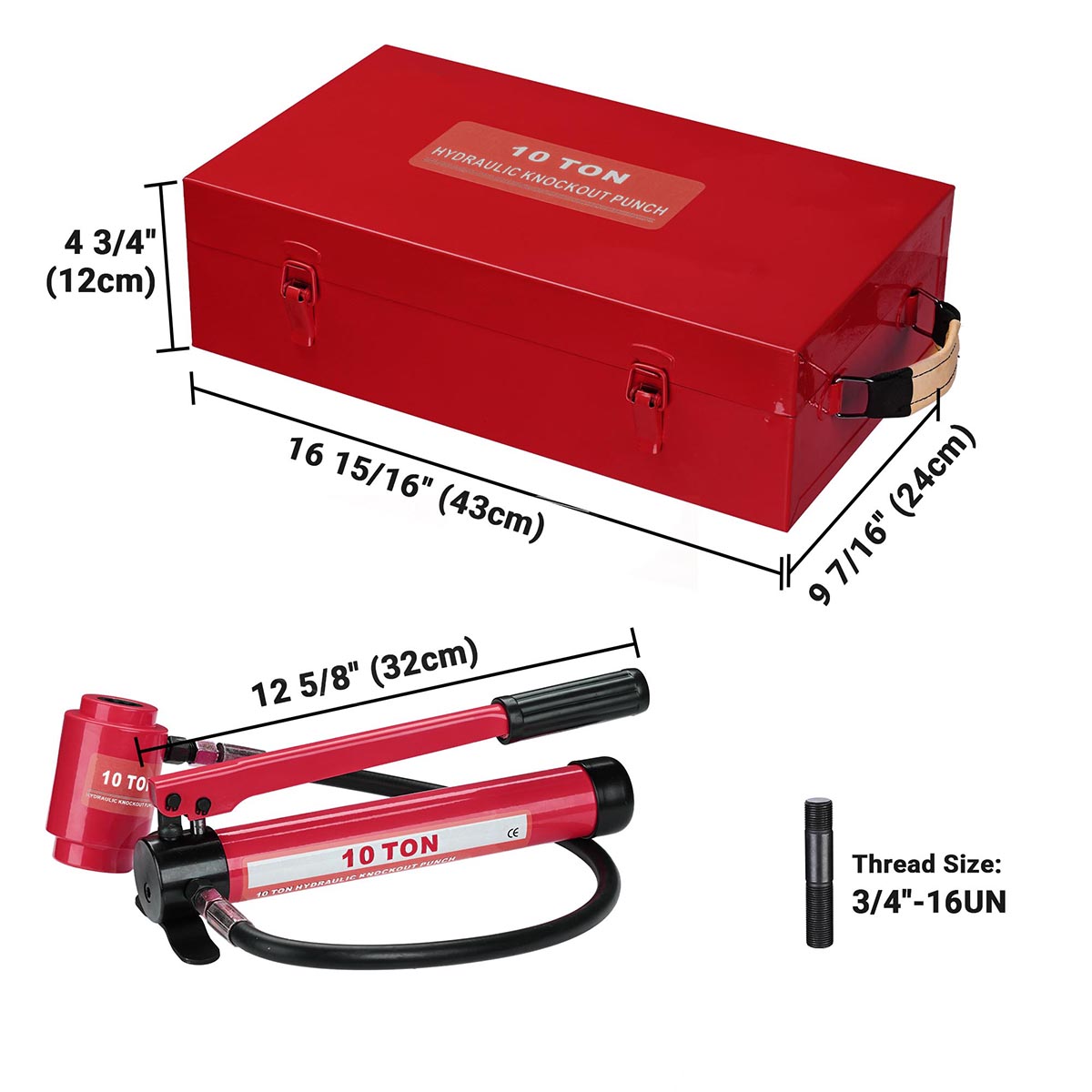

  • Sturdy metal case with handle and double metal locks for convenient and safe storage
  • Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.

Specification:

  • Max Pressure:10 ton
  • Max Thickness for Steel: 3.2 mm ( 11 gauge )
  • Max Thickness for Stainless Steel: 1/16" ( 16 gauge )
  • Ram with 31" High Pressure Hose

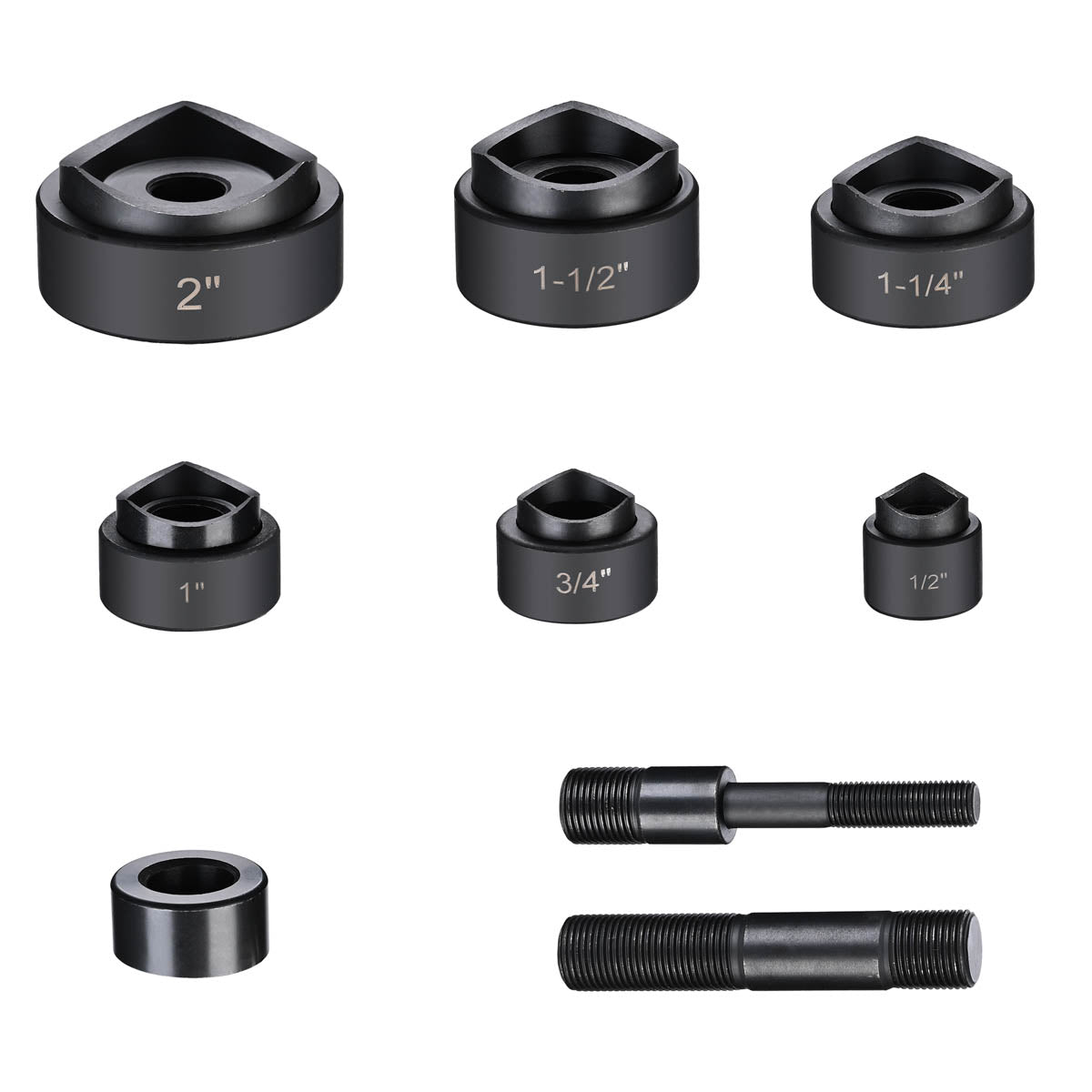

  • 6 x Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
  • Drilling Hole Size: 7/8" (22.5mm), 1 1/8" (28.3mm), 1 3/8" (34.6mm), 1 11/16" (43.2mm), 1 15/16" (49.6mm), 2 7/16" (61.5mm)
  • 2 x Draw Studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam
  • Material: 45# Steel, 40Cr Steel
  • Net Weight: 23.1 Lbs (10.5 kg)

Corresponding Size:

Actual Hole Size Dies & Punches Size
0.885" (22.5mm) 1/2"
1.115" (28.3mm) 3/4"
1.362" (34.6mm) 1"
1.701"(43.2mm) 1 1/4"
1.951"(49.6mm) 1 1/2"
2.416"(61.5mm) 2"

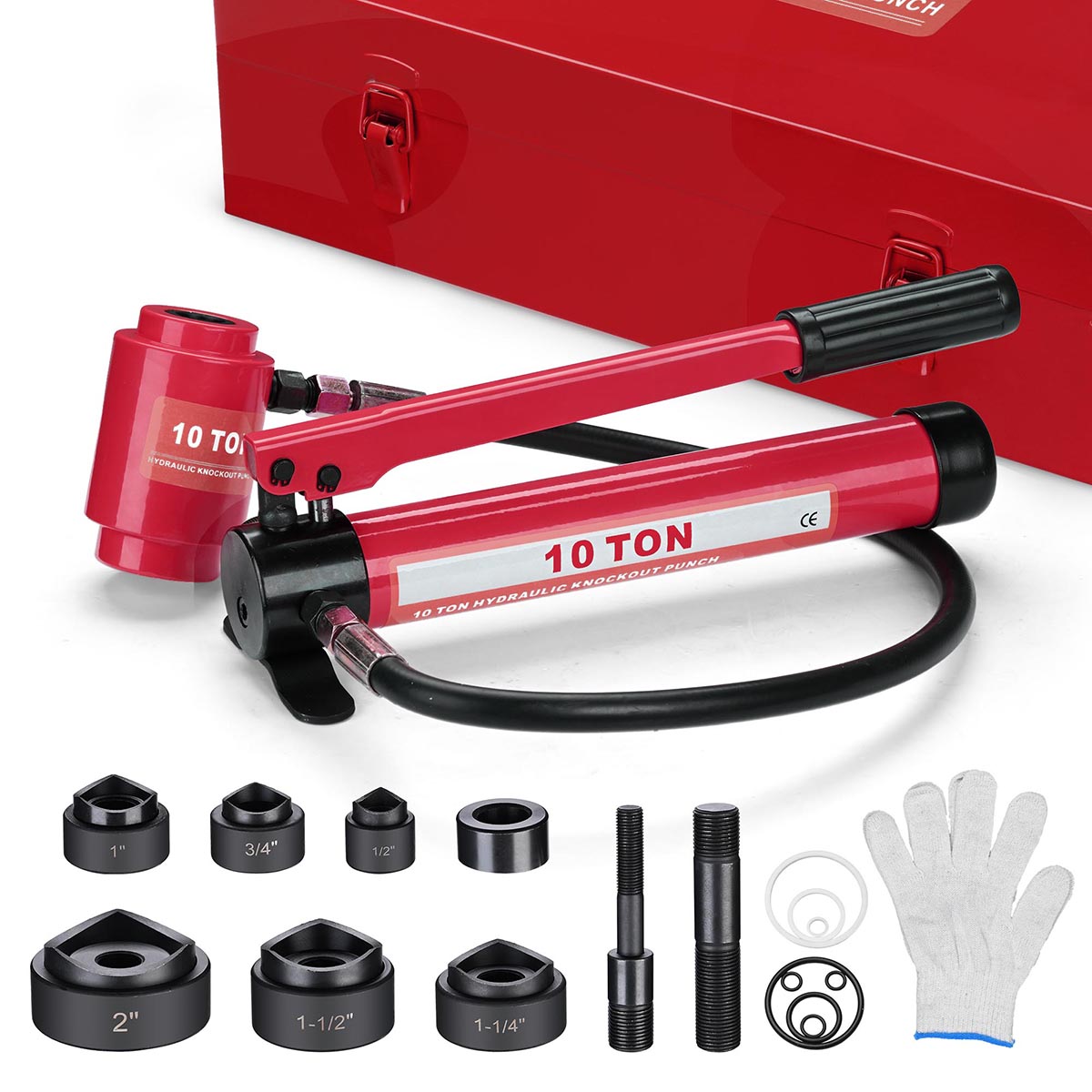

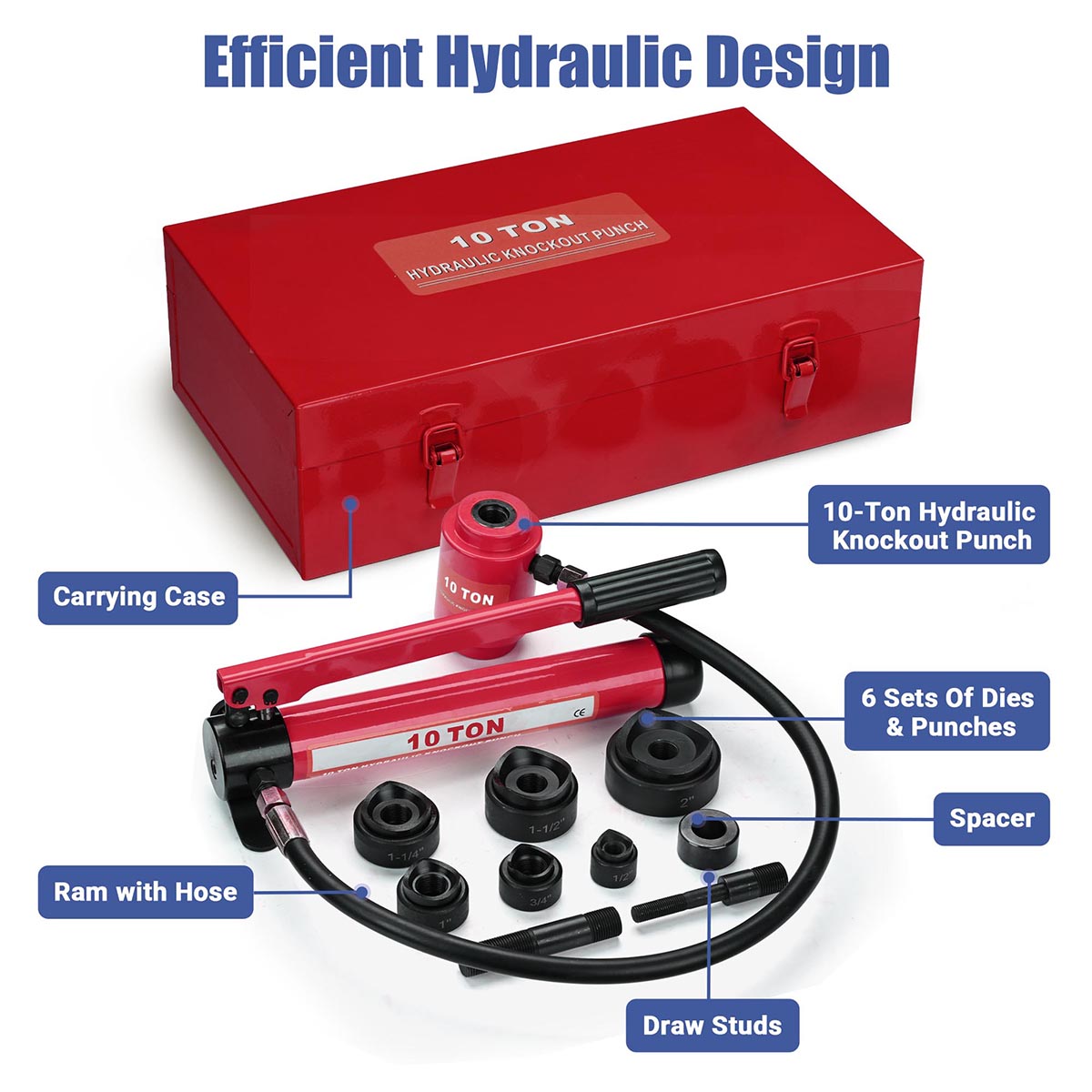

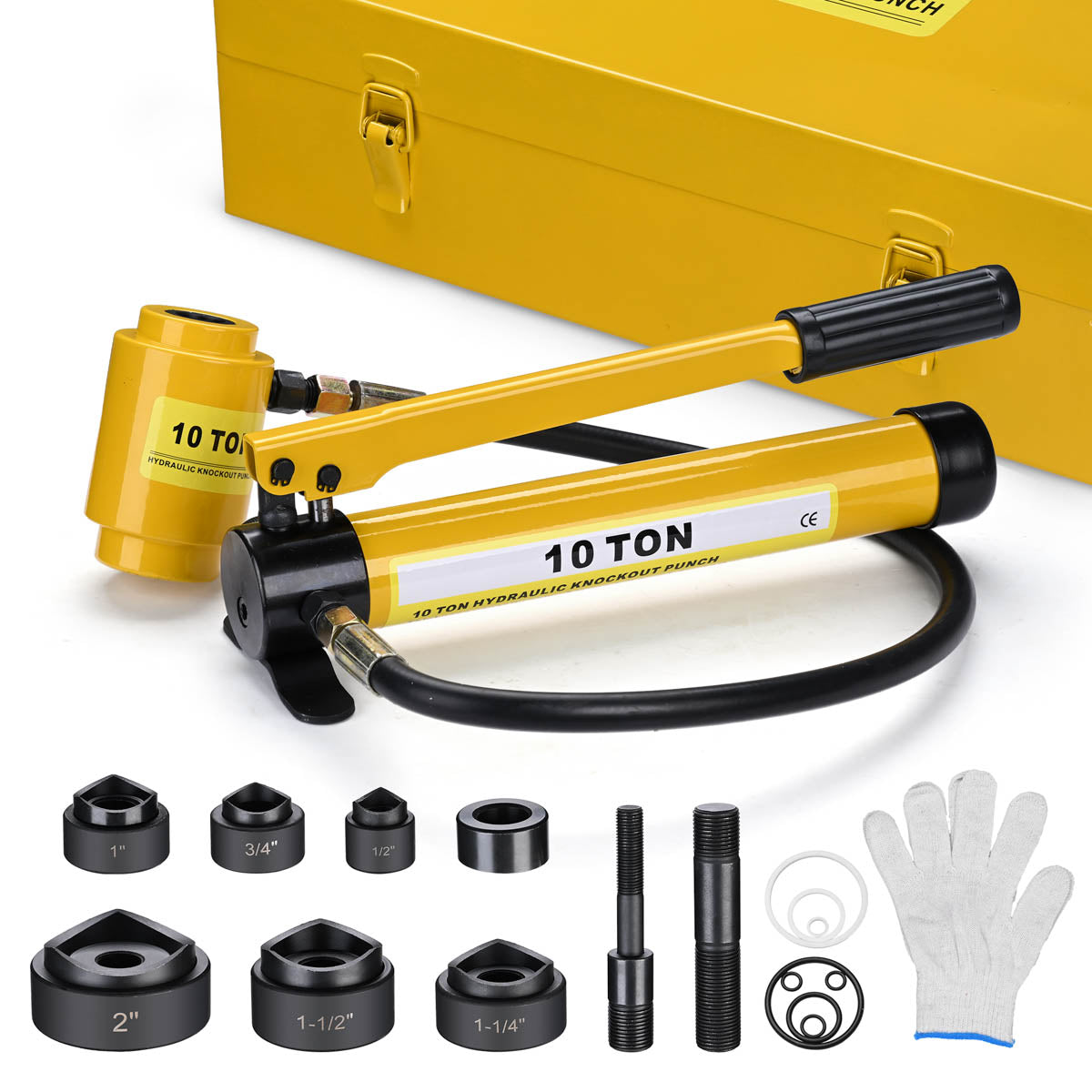

Package Includes:

  • 1 x 10-Ton Pump
  • 1 x Ram with Hose
  • 6 x Dies & Punches
  • 2 x Spacers
  • 1 x Piston Shaft
  • 2 x Draw Studs
  • 1 x Sturdy Metal Carrying Case
  • 1 x Manual

NOTICE: Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram
