Throw out those old wrench-style punches and upgrade with this Brand New Complete 15-Ton Hydraulic Punch Driver Kit, even though material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!

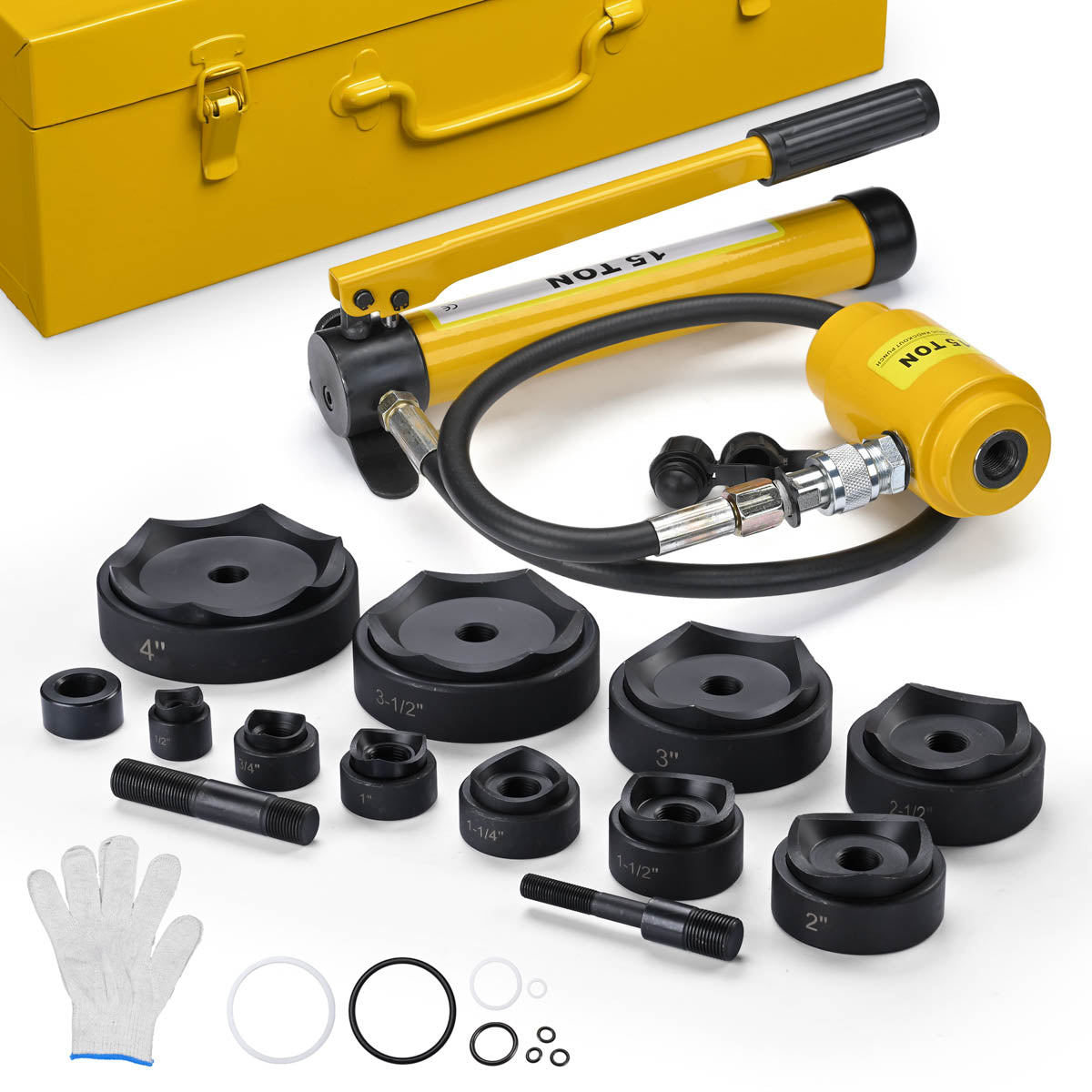

Here is a listing for Color Optional: Yellow/ Red.


  • 10 Dies & Punches Interchangeable to Meet Different Needs
  • Hydraulic mechanism pump produces 15T strong pressure for providing high punching accuracy and fast punching speed which is 10 times much faster than common wrenches, more labor-saving on punching uniform holes; pump with pressure hose for adjusting the angle of the ram flexibly
  • 40Cr steel dies and 45# steel pump body for ensuring high strength, sturdiness and durability, stable construction
  • Rotatable "ON / OFF" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value, perfect for adding more safety
  • Anti-skid plastic grip at the end of the handle for easy and comfortable pressing
  • Easy Seating with the Brackets on the Bottom of the Hydraulic Pump
  • Portable Metal Case for Convenient traveling
  • Sturdy metal case with handle and double metal locks for convenient and safe storage
  • Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.

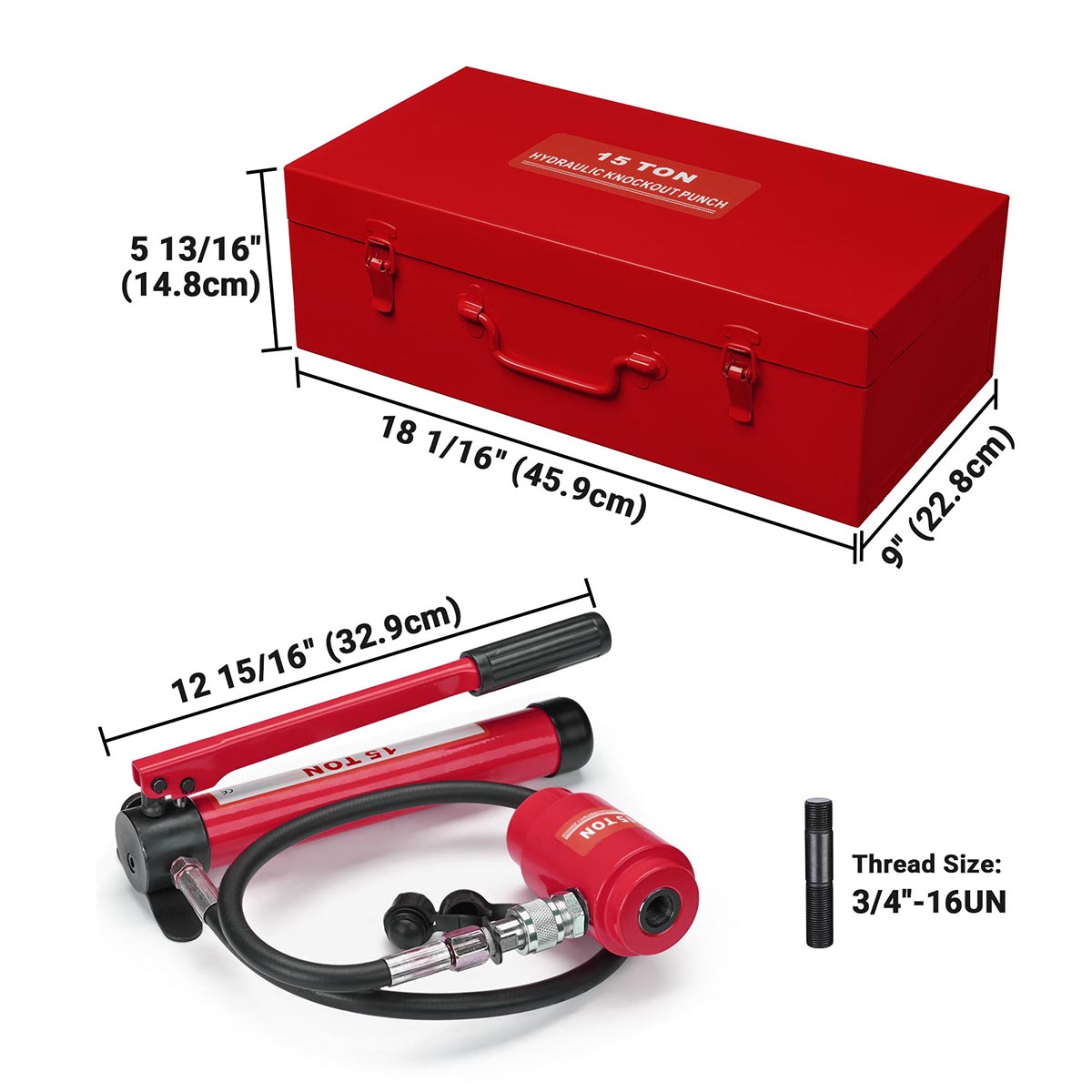

  • Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
  • Metal Case Dimension(LxWxH): 18 1/2" x  9 7/16" x 5 7/8" (47 x 24 x 15 cm)
  • Max Pressure: 15 ton
  • Max Thickness for Iron: 1/8" (11 gauge)
  • Max Thickness for Stainless Steel: 1/16" (16 gauge)
  • 10pc Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4"
  • Piston Shaft Sizes(LxDia.): 4 3/4" x 3/4" (12 x 1.9 cm), 3 1/8" x 3/4" (8 x 1.9 cm)
  • Draw Stud Size(LxDia.): 4 1/8" x 5/16" (10.5 x 0.78 cm)
  • Hose Length: 50 3/8" (128 cm)
  • Material: 45# Steel, Aluminum Alloy, 40Cr Steel
  • Net Weight: 48.5 Lbs (22 kg)

Corresponding Size:

    Actual Hole Size Dies & Punches Size
    0.885" (22.5mm) 1/2"
    1.115" (28.3mm) 3/4"
    1.362" (34.6mm) 1"
    1.701"(43.2mm) 1 1/4"
    1.951"(49.6mm) 1 1/2"
    2.416"(61.5mm) 2"
    2.914"(74mm) 2 1/2"
    3.539"(89.9mm) 3"
    4.044"(102.7mm) 3 1/2"
    4.544"(115.4mm) 4"

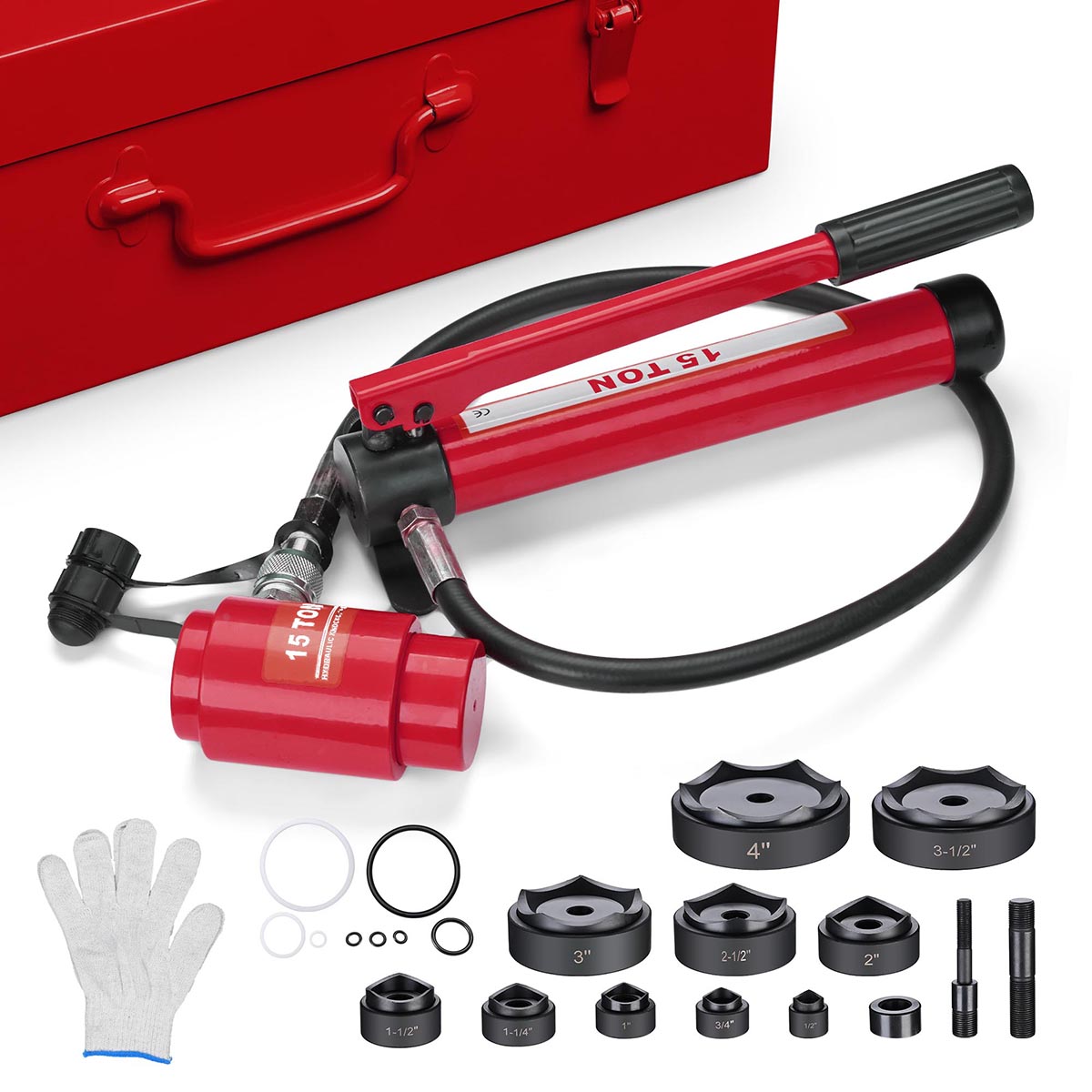

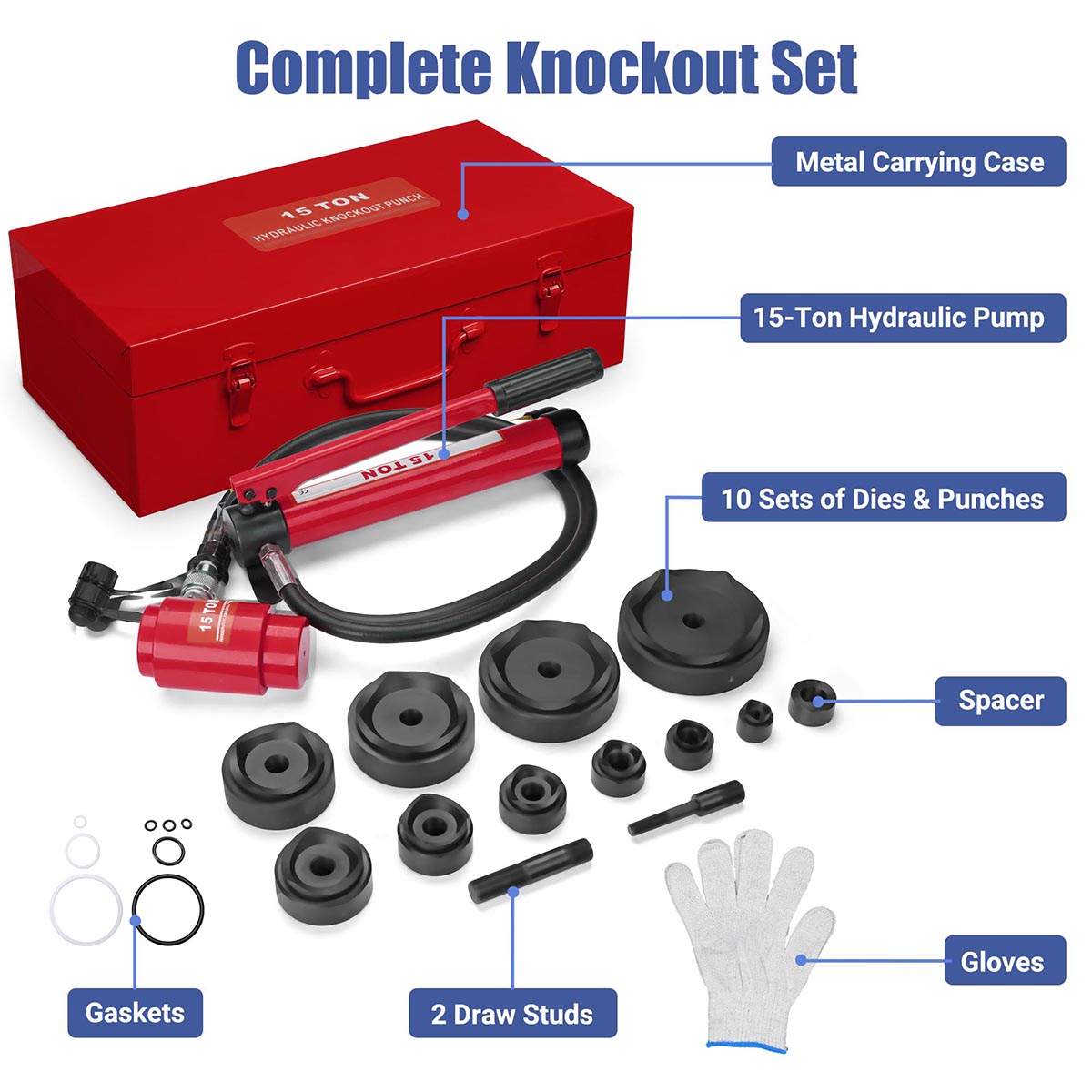

Package Includes:

  • 1 x 15-Ton Pump
  • 1 x Ram with Hose
  • 10 x Dies & Punches
  • 2 x Piston Shafts
  • 2 x Draw Studs
  • 2 x Spacers
  • Sealing rings(Yellow Set Only)
  • 1 x Manual
  • 1 x Sturdy Metal Carrying Case

NOTICE: Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram
