36V 750W 20 inch Front Frame 1.95-2.5" Width Rim Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.
The ebike conversion kit includes motorized wheel (without tire), motor controller, thumb throttle, power break lever, wire harness.
Suitable Tire Size - 20" x 1.95" to 2.5" (a tire that is 20" in outer diameter and 1.95" to 2.5" in width)
E-bike Conversion Kit - easy to convert your bike to an electric powered scooter/moped
750W powerful brushless gearless hub motor with 25 km/h top speed
The brake shuts off motor automatically - saves energy and improves safety
Aluminum rim for strong support & rust resistance
Thumb throttle with 3 LED battery indicator lights
Motor specifications: 36V / 750W / 500RPM
High motor efficiency: 80%
Wheel Outer Diameter: 20" (50.8 cm)
Hub Length: 6 7/8" (17.5 cm)
Hub Spacing: 4" (10 cm)
Rim Width: 1 9/16" (4 cm)
Rim Diameter: 16 9/16" (42 cm)
Motor Diameter: 7 7/8" (20 cm)
Axle Length: 6 7/8" (17.5 cm)
Front Dropout Spacing: 3 15/16" (10 cm)
The Number of Spokes: 36
Spokes Length: 4 7/16", 4 1/2" (11.3 cm, 11.5cm)
Spoke Specification: 12G
Motor Torque: 36.88 ft·lb (50 Nm)
Recommended Battery Specification: 36V/25A
Recommended Battery Capacity: More than 8.8Ah
Suitable Brake Type: Disc Brake / V-Brake
Weight Capacity: 220 Lbs (100kg)
Climbing Angle: 12 Degrees
Net Weight: 18.3 lbs (8.3 kg)

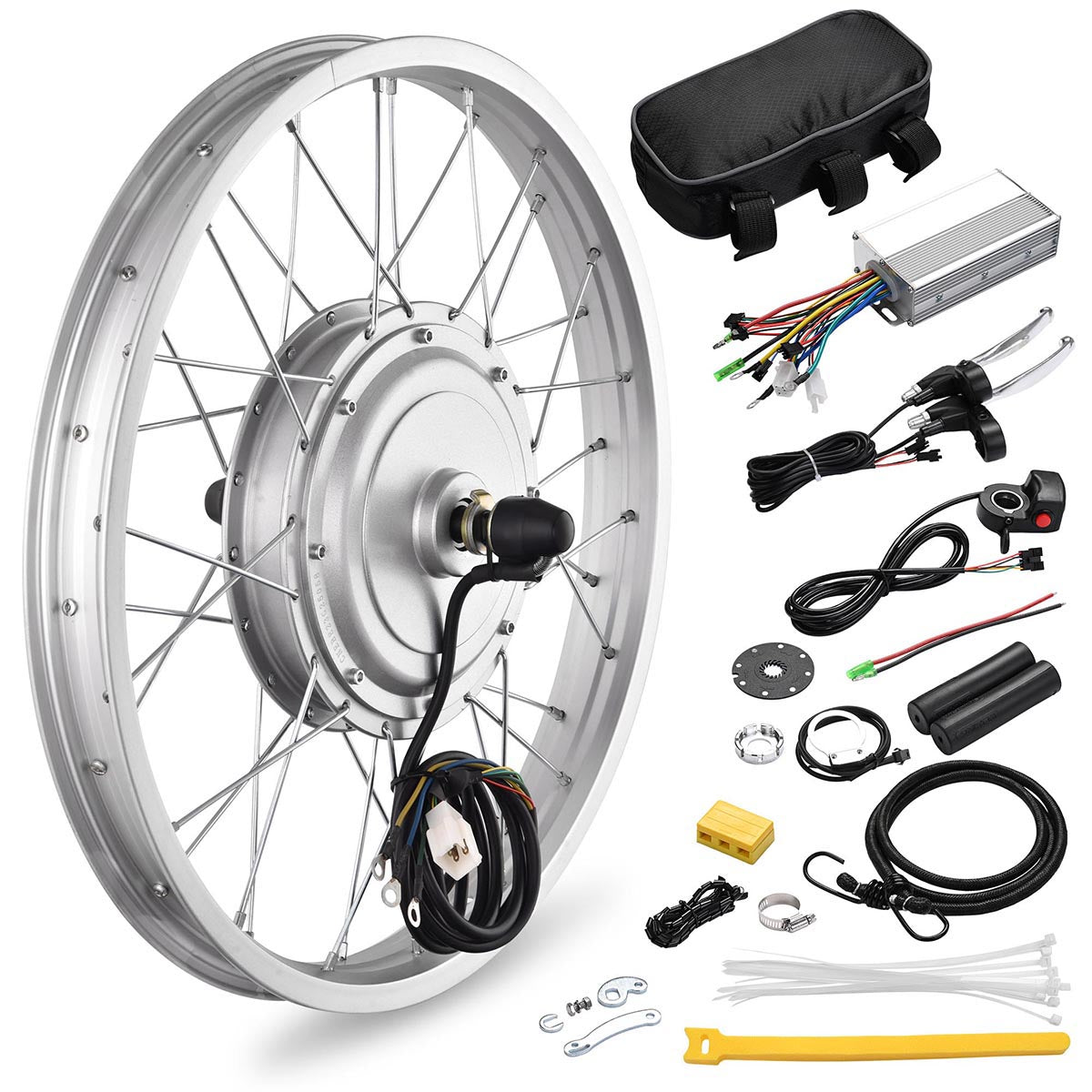

1x Powerful 750W 36V brushless hub motor
1x 20" front wheel (the whole wheel without tire!)
1x Electric Controller
2x Hand Brakes
2x Handle Grips
1x Thumb Throttle
1x Controller Bag
1x Winding Pipe
1 Set of Cable Ties
1x Spoke Key
1.Must to wear a helmet before riding this electric bicycle for protection.
2.Please go to those automobile repair shop with standard business license for modification.
3.For safety reasons, it is not recommended to use in rainy days
4.It is only suitable for bicycle/mountain bike/BMX, not tricycles, tractors, etc;
5. If you have any question about the compatible Model, please contact our Customer Service before purchasing.
