36V 750W 24 inch Front Frame 1 15/16" to 2 1/2" Width Rim Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.


  • Suitable Tire Size - 24" x 1 15/16" to 2 1/2" (a tire that is 24" outer diameter and 1 15/16" to 2 1/2" in width)
  • E-bike Conversion Kit - easy to convert your bike to an electric bikes; You can install the bike by yourself or find a bicycle store for assistance
  • 750W powerful brushless gearless hub motor with 45 km/h top speed
  • The brake shuts off motor automatically - saves energy and improves safety
  • Aluminum rim for strong support & rust resistance; Can support a heavy weight up to 220 Lbs
  • Thumb throttle with 3 LED battery indicator lights for displaying battery status, perfect to avoid stopping working caused by low battery suddenly


  • Overall Dimension(Dia.xW): 20 1/2" x 1 9/16" (52 x 4 cm)
  • Compatible Tire Size: 24"
  • Rim Diameter: 20 1/2" (52 cm)
  • Axial Length: 6 7/8" (17.5 cm)
  • Front Dropout Spacing: 3 15/16" (10 cm)
  • Motor Diameter: 7 7/8" (20 cm)
  • Controller Power: 750W
  • Motor Voltage: 36V
  • Motor Rotating Speed: 500 RPM
  • Motor Torque: 50 N.m
  • Recommended Battery Specification: 36V/25A
  • Recommended Battery Capacity: More than 8.8 Ah
  • Suitable Brake Type: Disc Brake / V-Brake
  • Weight Capacity: 220 Lbs (100 kg)
  • Climbing Angle: 12 Degrees
  • Net Weight: 19.1 Lbs (8.65 kg)

Package Contents:

  • 1x 24" Front Wheel with Brushless Hub Motor (Tire Not Included)
  • 1x Electric Controller
  • 2x Hand Brakes
  • 1x Thumb Throttle
  • 2x Handle Grips

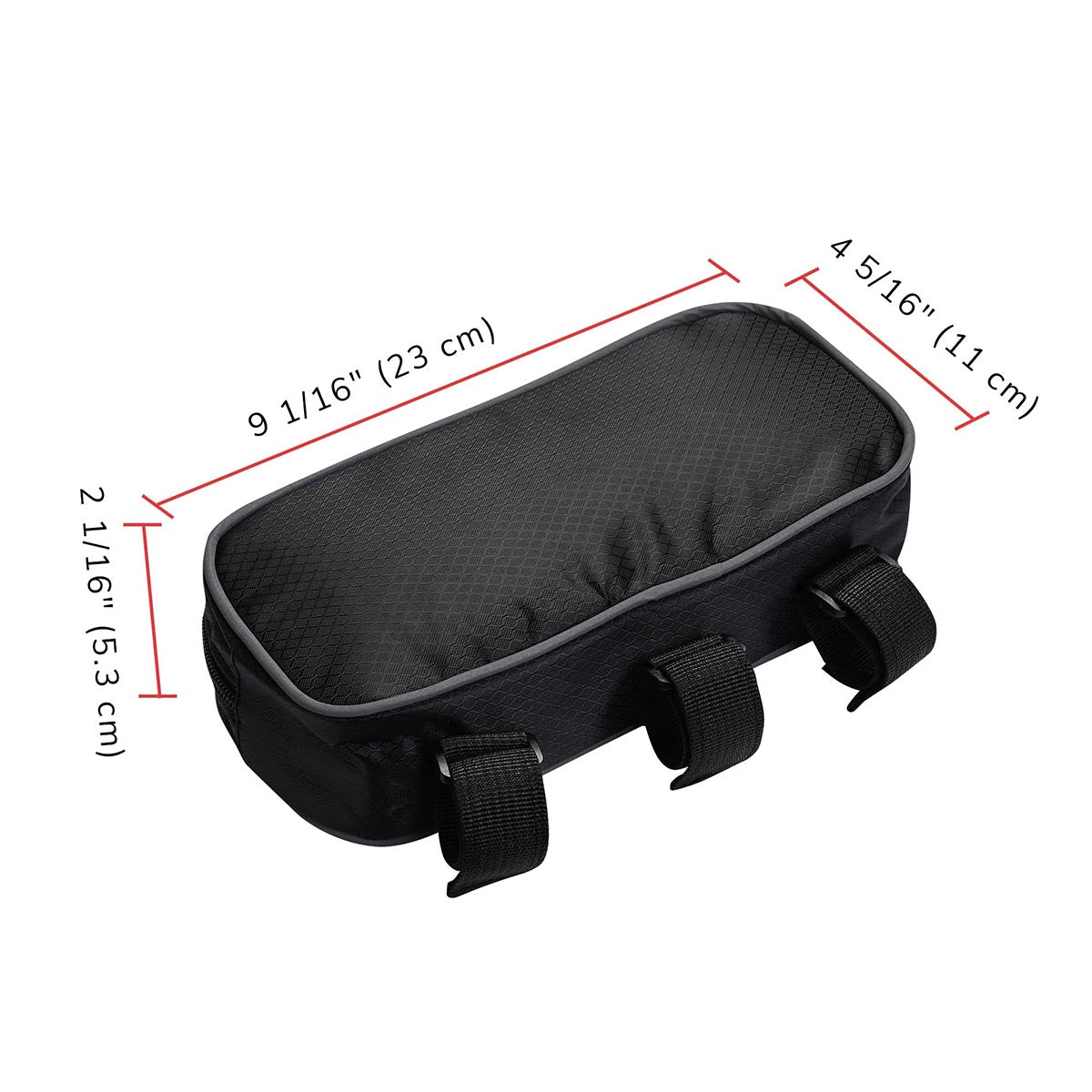

  • 1x Controller Bag
  • 1x Strip
  • 1x Winding Pipe
  • 1x Manual
  • 1x Spoke Key
  • 1 Set of Cable Ties

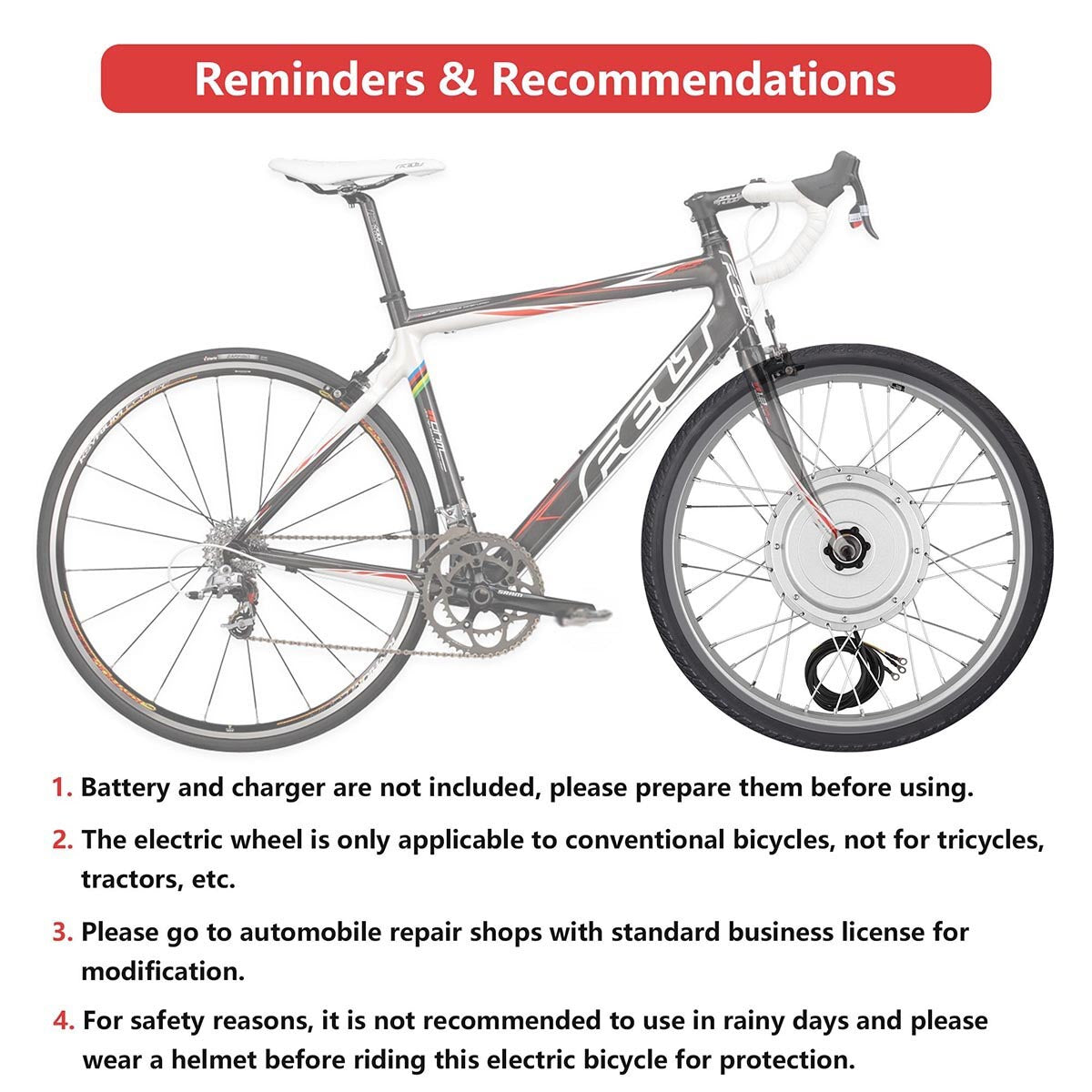

Please Notice

  • Battery and charger are not included, please prepare them before using.
  • The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc
  • Please go to automobile repair shops with standard business license for modification.
  • For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
