$139.99
Sku: LAS002131
Product Type: Metal Hole Punch
Metal Hole Punch
Member exclusive coupon: LASPERKS
$25 OFF on Order $200

Coupon is available after your account is successfully activated.

• Free Delivery within 3-5 business days.
• Payment Cleared before 12pm PST will be shipped out in the same business day (Pre-Orders Excepted).
30-Day Warranty & Return Policy

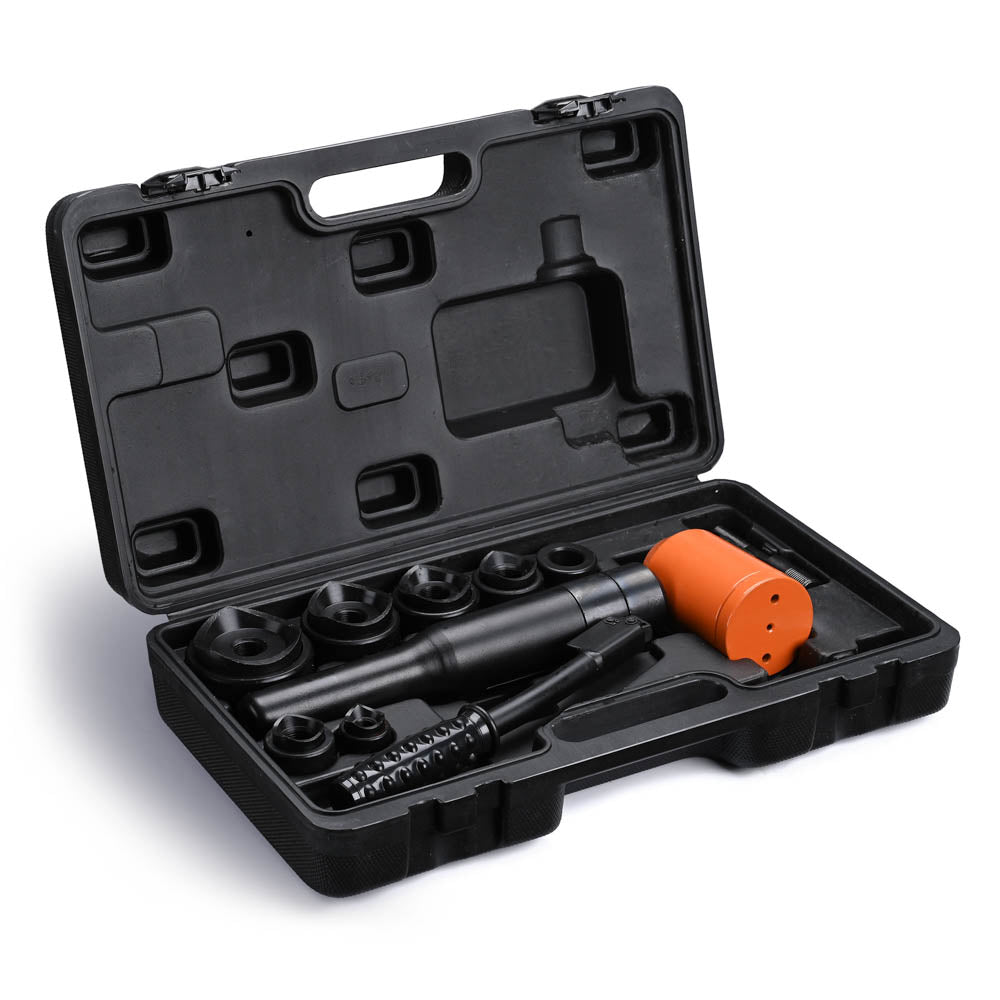

Throw out those old wrench-style punches and upgrade with this Brand New Complete 6-Ton Hydraulic Punch Driver Kit, even though material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance, chemical industry, ship & machinery and many more!

Features:

  • Complete Punch Tools

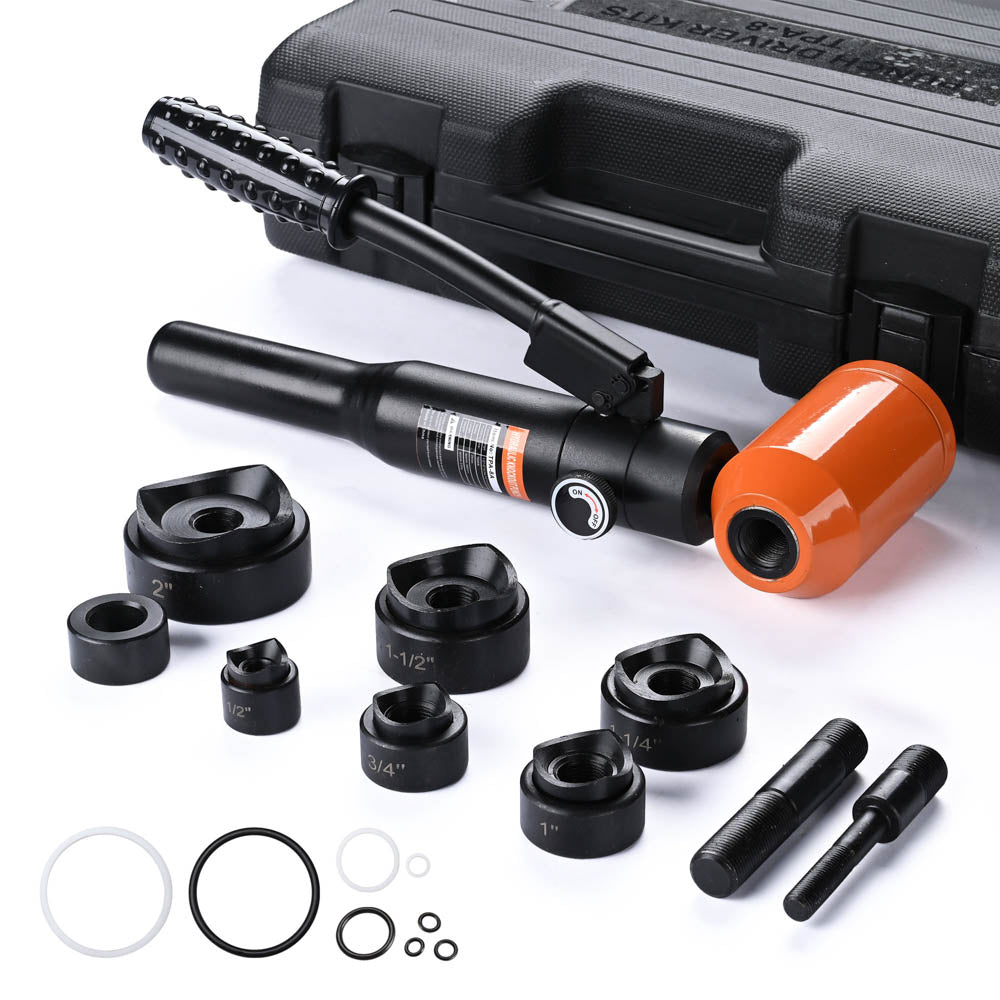

    • Features 1pc 6-ton pump, 2pcs draw studs, 1 set of spacers and 6 sets of interchangeable dies & punches for conduit fitting size of 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2", can drill different sizes holes on stainless steel, aluminum, steel, plastic, etc
    • 1/8" (11 gauge) max punching thickness for steel and 1/16" (14 gauge) for stainless steel
  • Efficient Hydraulic Design
    • Hydraulic mechanism of the pump produces a strong force of 6T (59KN) for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches
    • Rotary "on/off " knob on the pump for quick releasing pressure, adding more safety

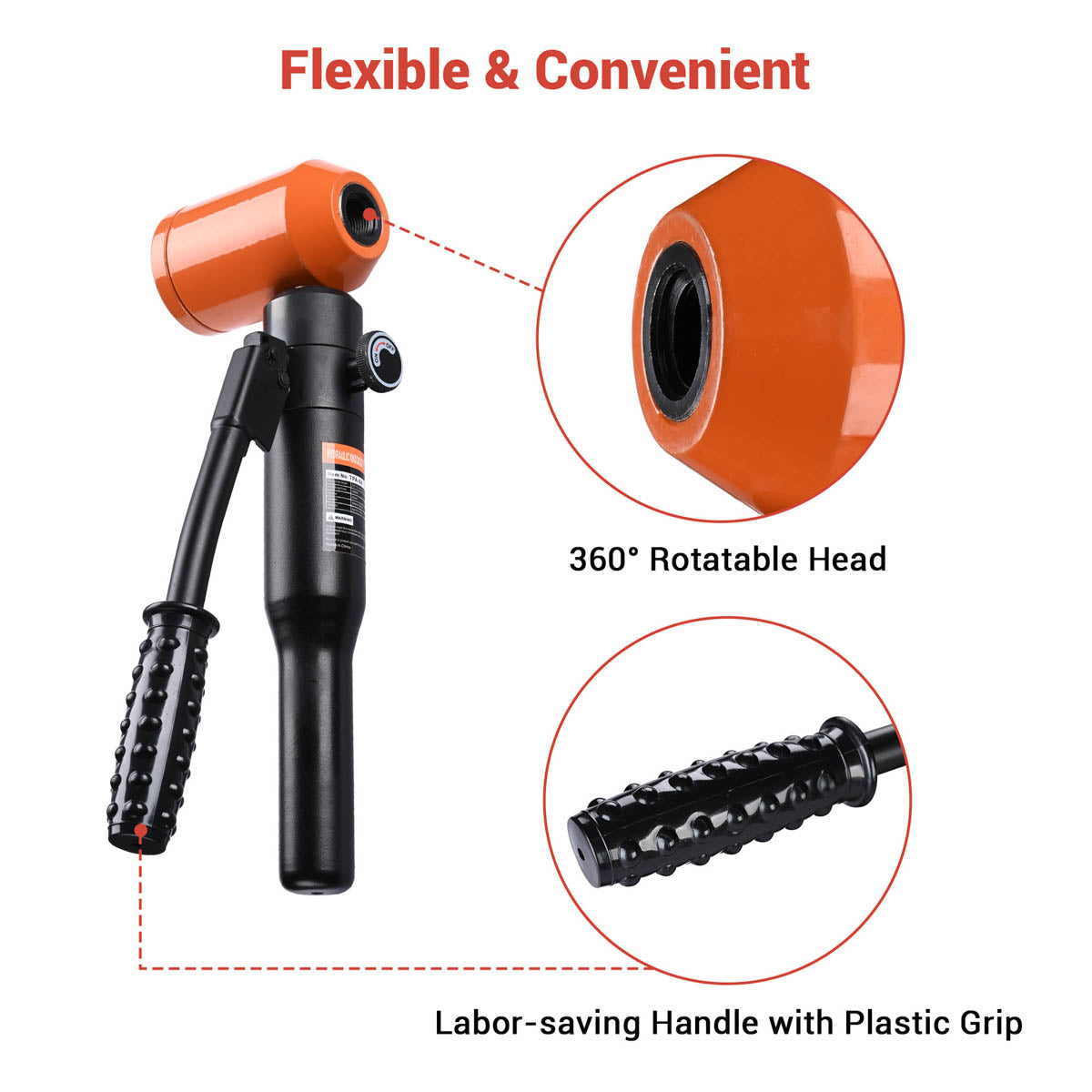

  • 360 Degrees rotatable punch head for meeting your punching needs, you can adjust it flexibly
  • Sturdy Metal Construction - 40Cr steel dies and aluminum alloy pump body for ensuring high strength, sturdiness and durability

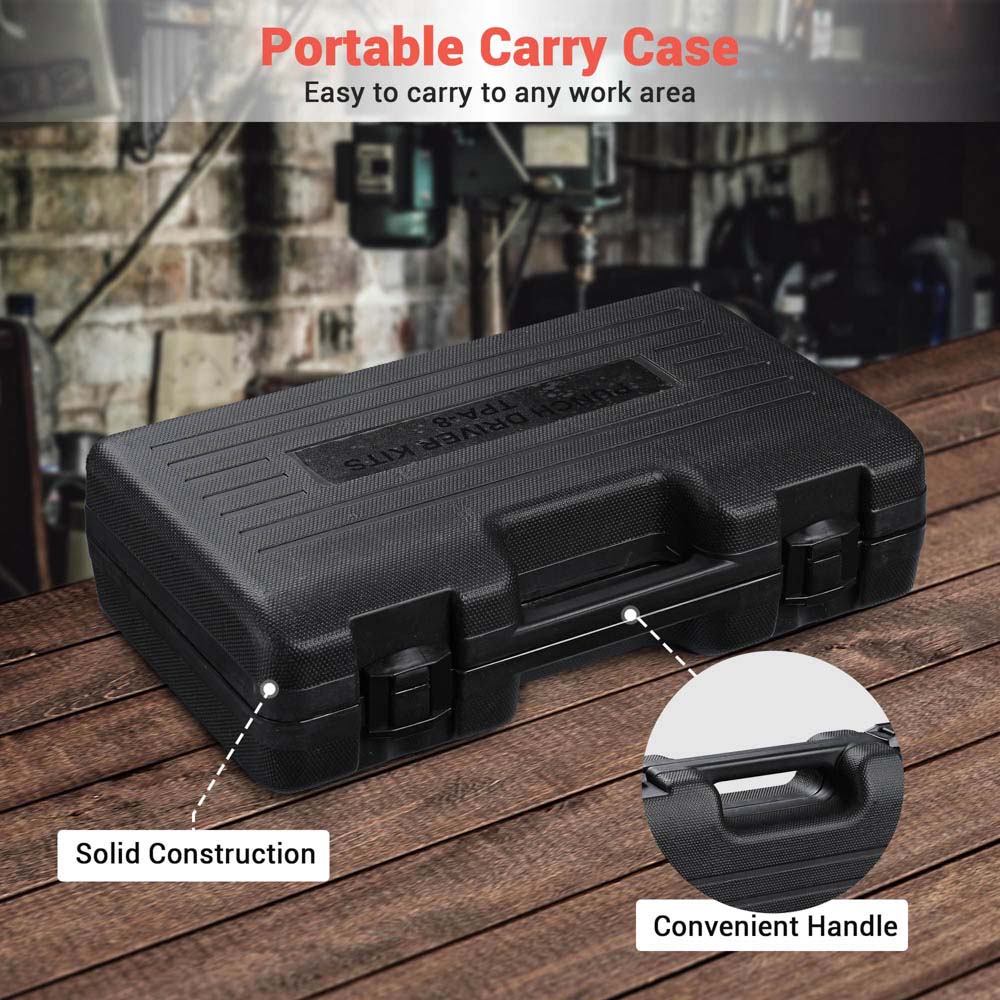

  • Blow-molded case with handle for convenient storage and keeping all accessories in place

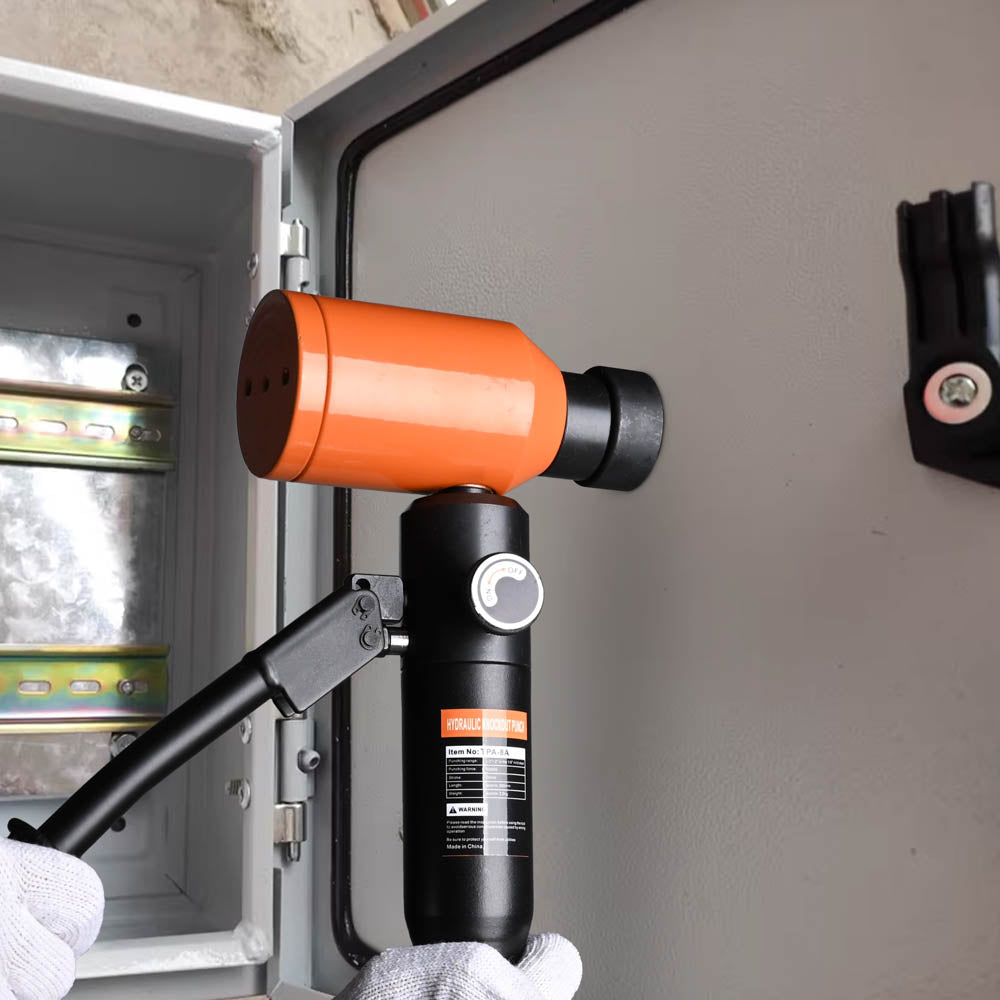

  • Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.

Specification:

  • Pump Dimension(LxWxH): 13 3/4" x 7 1/16" x 2 9/16" (35 x 18 x 6.5 cm)
  • Extendable Handle Range: 2 3/8" to 8 11/16" (6 to 22 cm)
  • Plastic Case Dimension(LxWxH): 16 1/8" x 9 13/16" x 4 5/16" (41 x 25 x 11 cm)

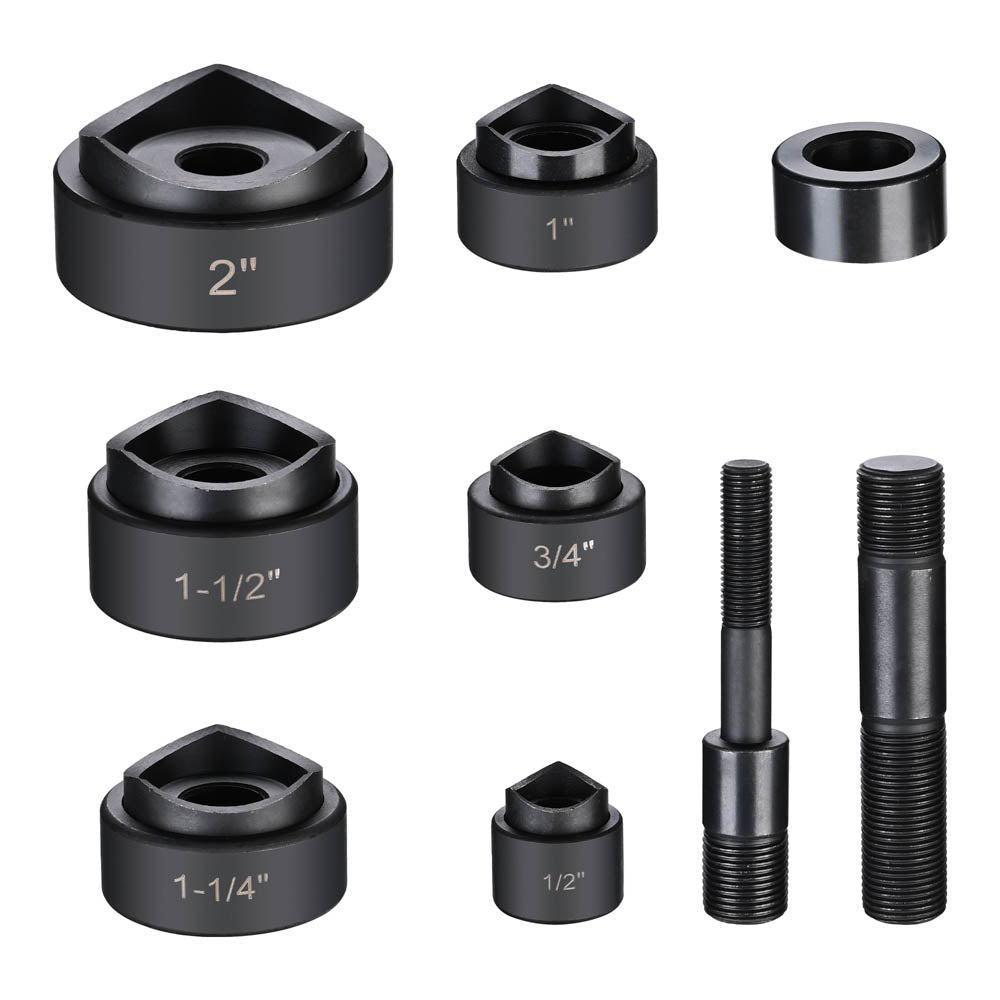

  • 6 Punch Dies: 1/2"(22.5mm), 3/4"(28.3mm), 1"(34.6mm), 1 1/4"(43.2mm), 1 1/2"(49.6mm), 2"(61.5mm)
  • Max Pressure: 6 ton
  • Stroke: 7/8" (22 mm)
  • Material: 45# Steel, Aluminum Alloy, 40Cr Steel
  • Max Thickness for Steel: 1/8" (11 gauge)
  • Max Thickness for Stainless Steel: 1/16" (14 gauge)
  • Net Weight: 12.6 Lbs (5.7 kg)

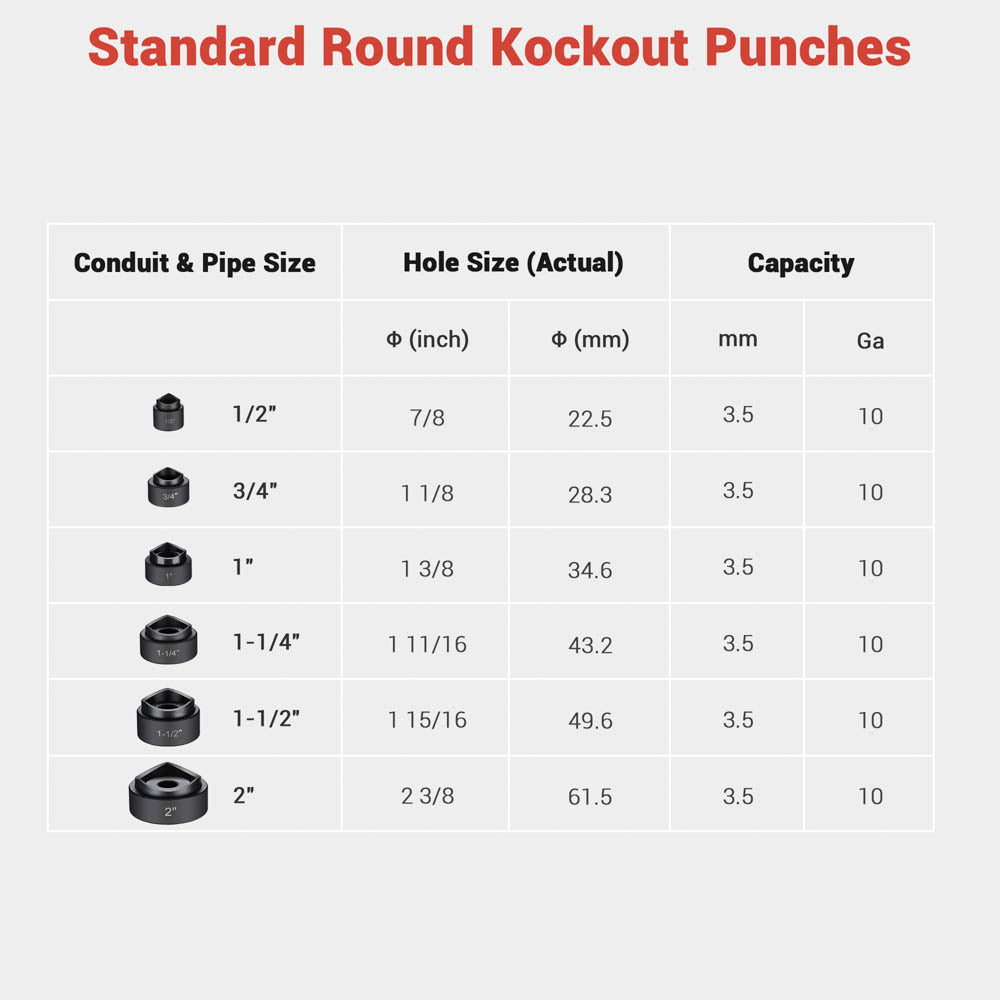

Corresponding Size:

Actual Hole Size Dies & Punches Size
0.885" (22.5mm) 1/2"
1.115" (28.3mm) 3/4"
1.362" (34.6mm) 1"
1.701"(43.2mm) 1 1/4"
1.951"(49.6mm) 1 1/2"
2.416"(61.5mm) 2"

Package Content:

  • 1 x 6-ton pump
  • 6 Sets of Dies & Punches
  • 2 x draw studs
  • 1 Set of Spacer
  • 1x Plastic Carrying Case
  • 1x Manual

Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram
