TheLAShop Eyelet Press Machine Grommet Die Set - Size #0, #2, or #4

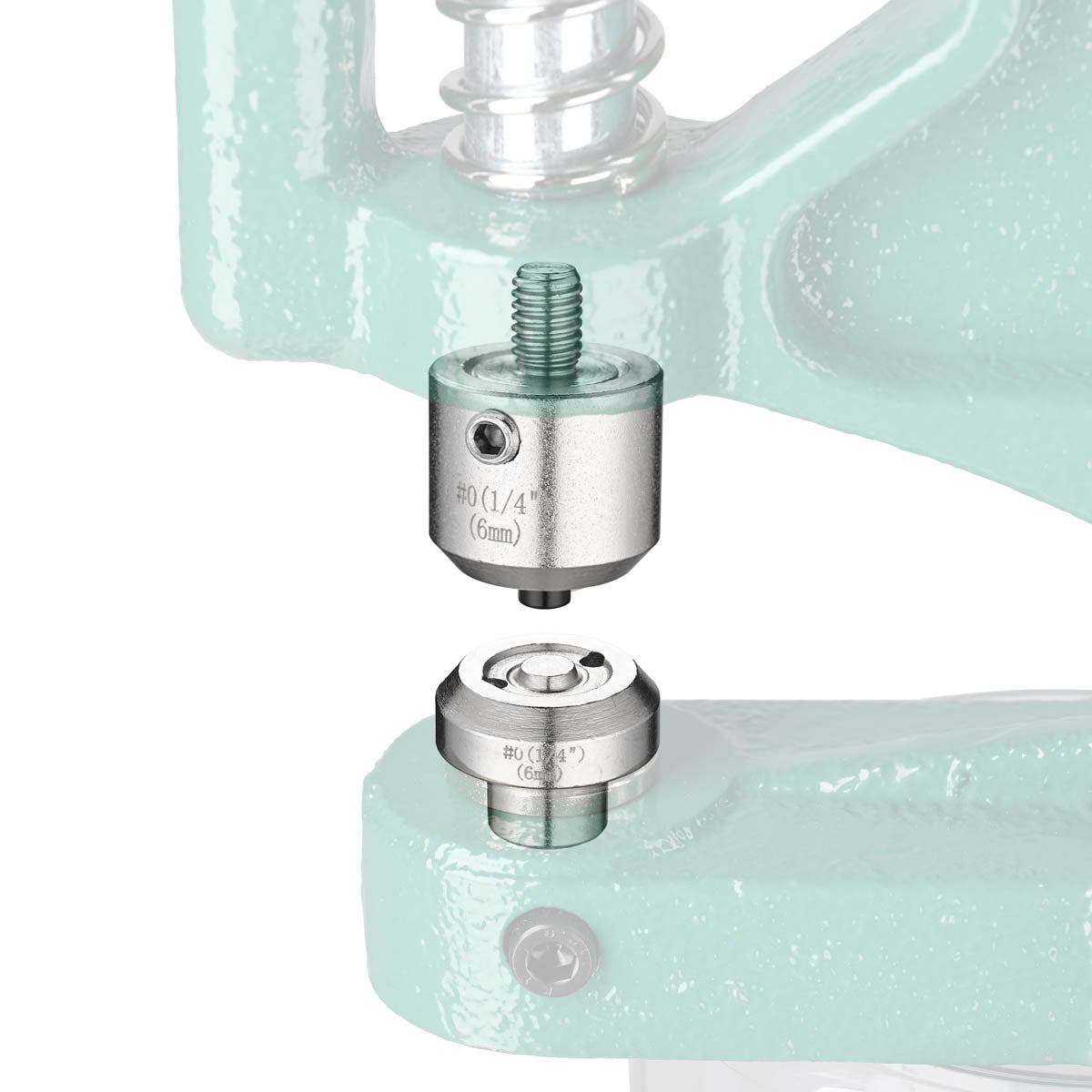

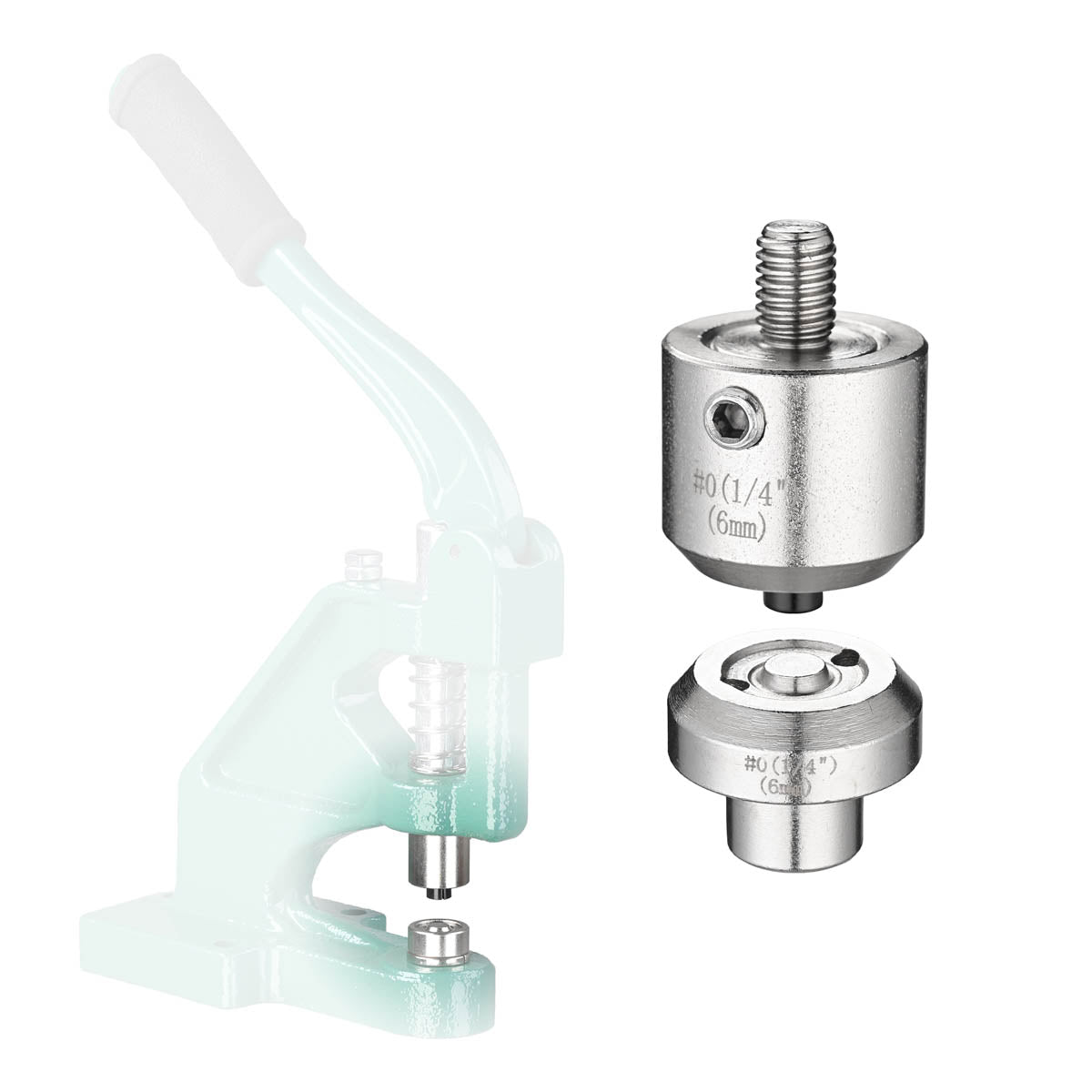

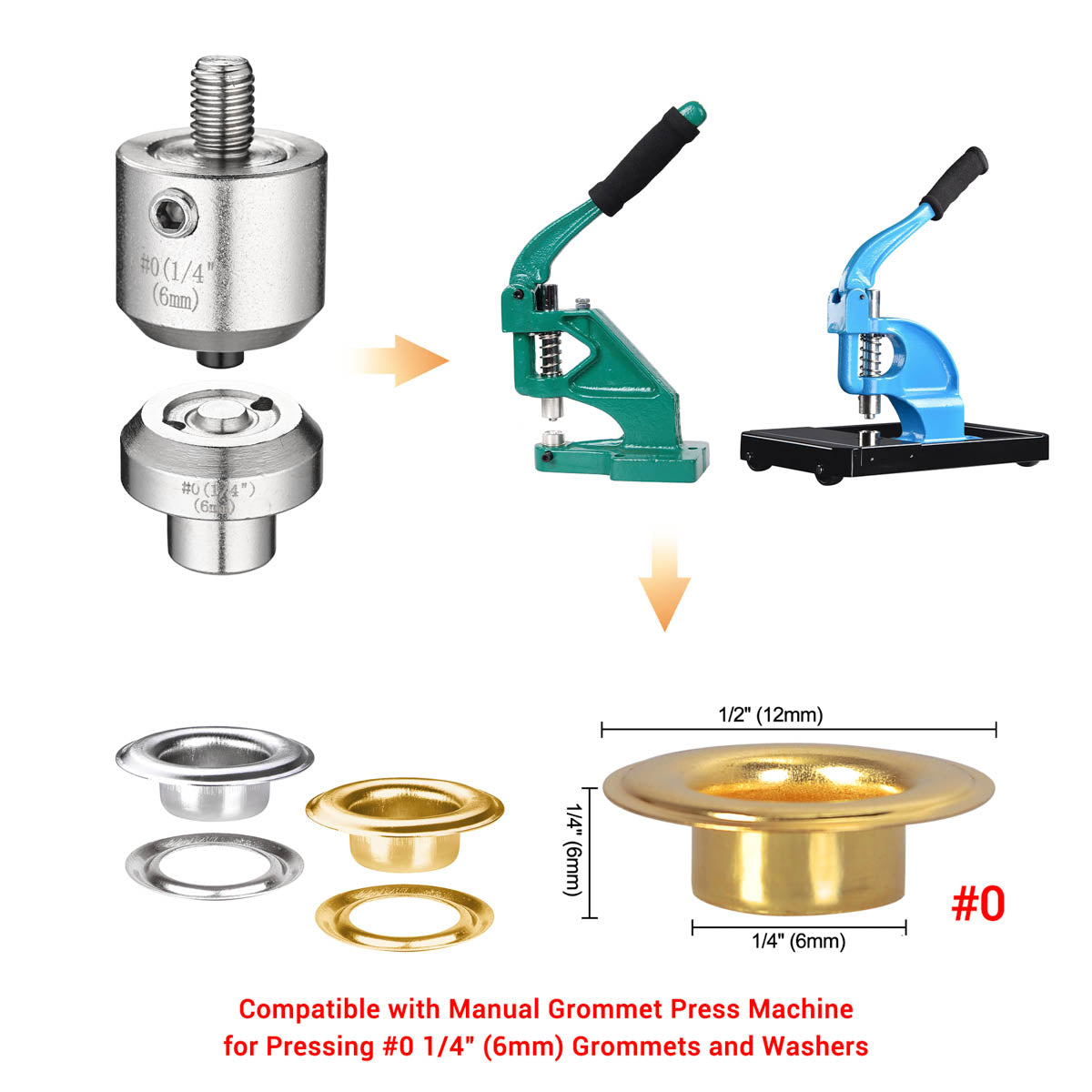

TheLAShop Eyelet Press Machine Grommet Die Set (offered in #0, #2, or #4 size options) functions as a heavy-duty replacement accessory for standard M8 eyelet press machines, delivering clean, precise eyelet installation for sign shops, event productions, and textile sample studios.

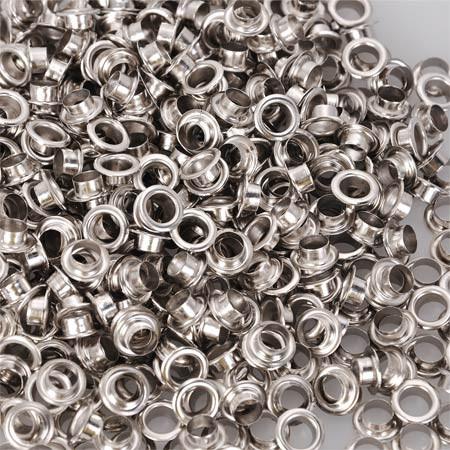

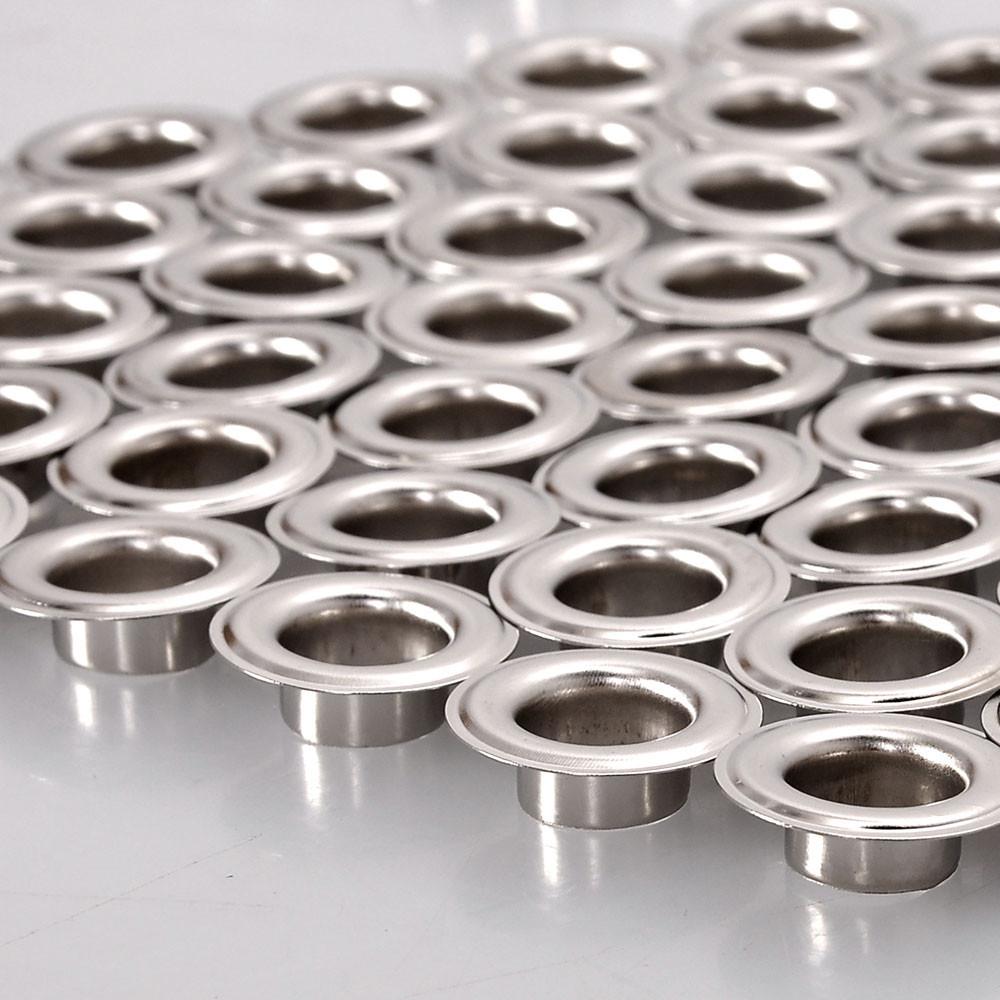

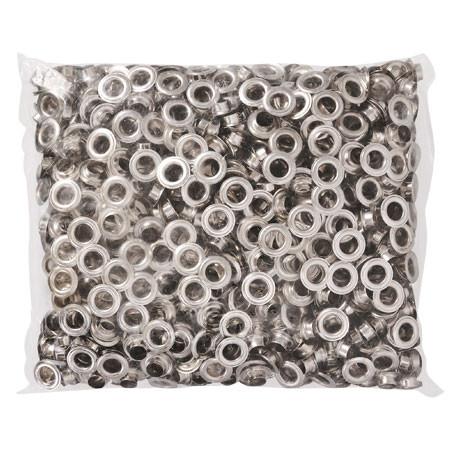

IMPORTANT NOTE: Verify your hand press has M8 upper thread and its lower base matches our lower die specs (Center Post: 0.47" Dia. × 0.31" H). Brands use different machine designs; mismatched dies won’t fit. Hand press and grommets are sold separetely.

Features:

• Heavy-Duty AISI 1045 Carbon Steel Construction: Crafted from high-strength carbon steel with a corrosion-resistant finish, these replacement dies withstand heavy-duty, repetitive workshop use without deforming, ensuring long-term durability for busy sign shops and active workrooms.
• Precision-Engineered Die Profiles: Expertly machined upper and lower dies provide a smooth, stable, and consistent pressing action every time, delivering clean and professional eyelet installation on heavy materials without tearing or fraying.
• Standard M8 Thread Compatibility: These dies feature a standard M8 thread (0.43" / 1.1 cm length) designed for a secure, wobble-free fit, and quickly swap into compatible hand press machines to minimize downtime.
• Versatile Commercial Applications: Suited for a wide range of professional workflows—from heavy-duty banner hemming and outdoor event displays to precision textile swatch production.

Specifications:

• Material: AISI 1045 carbon steel
• Color: Silver

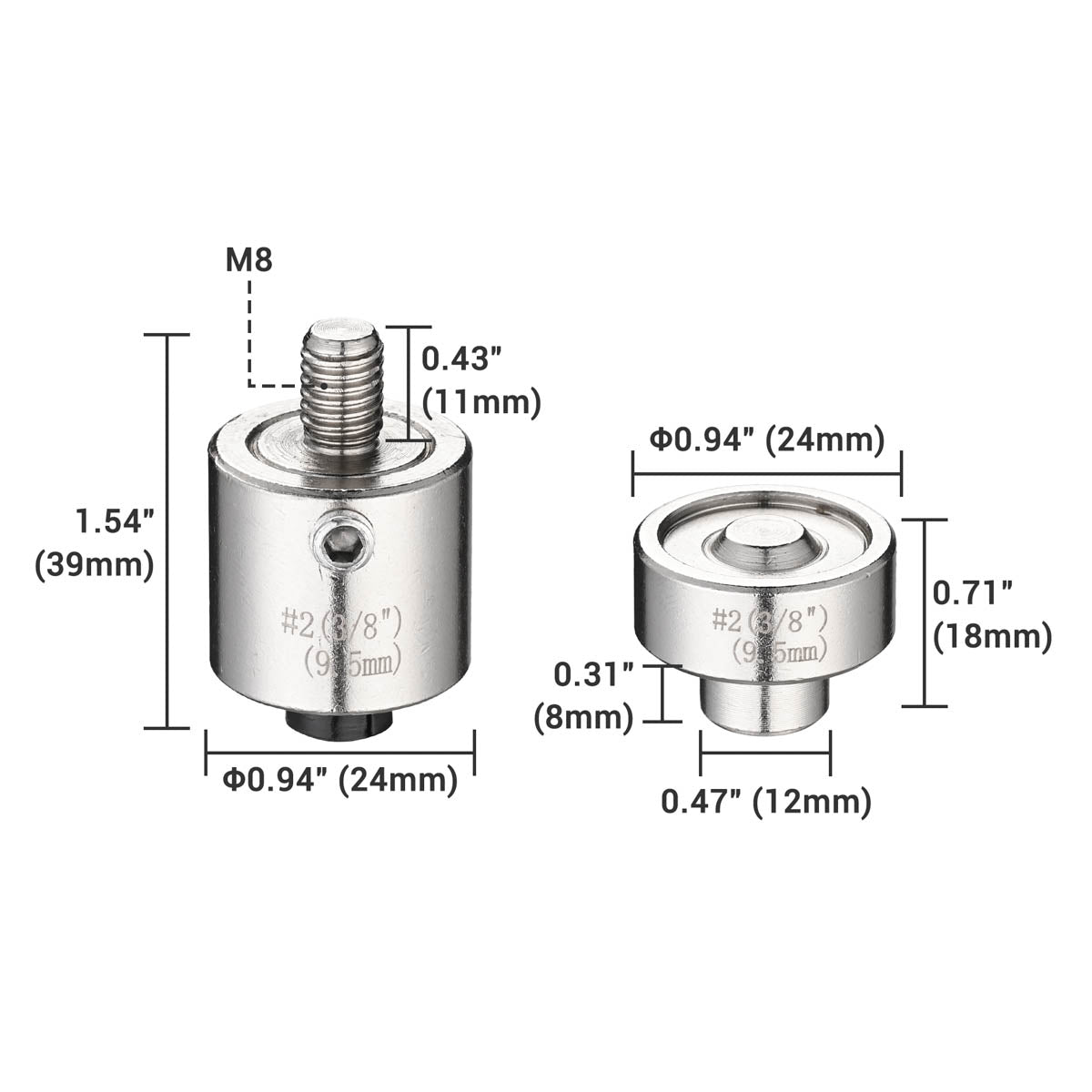

• Universal Fit Specs (Verify Before Purchase):
  • Upper Die Thread: M8 (Thread Length: 0.43" / 11mm)
  • Lower Die Center Post: 0.47" x 0.31" (12 x 8 mm)

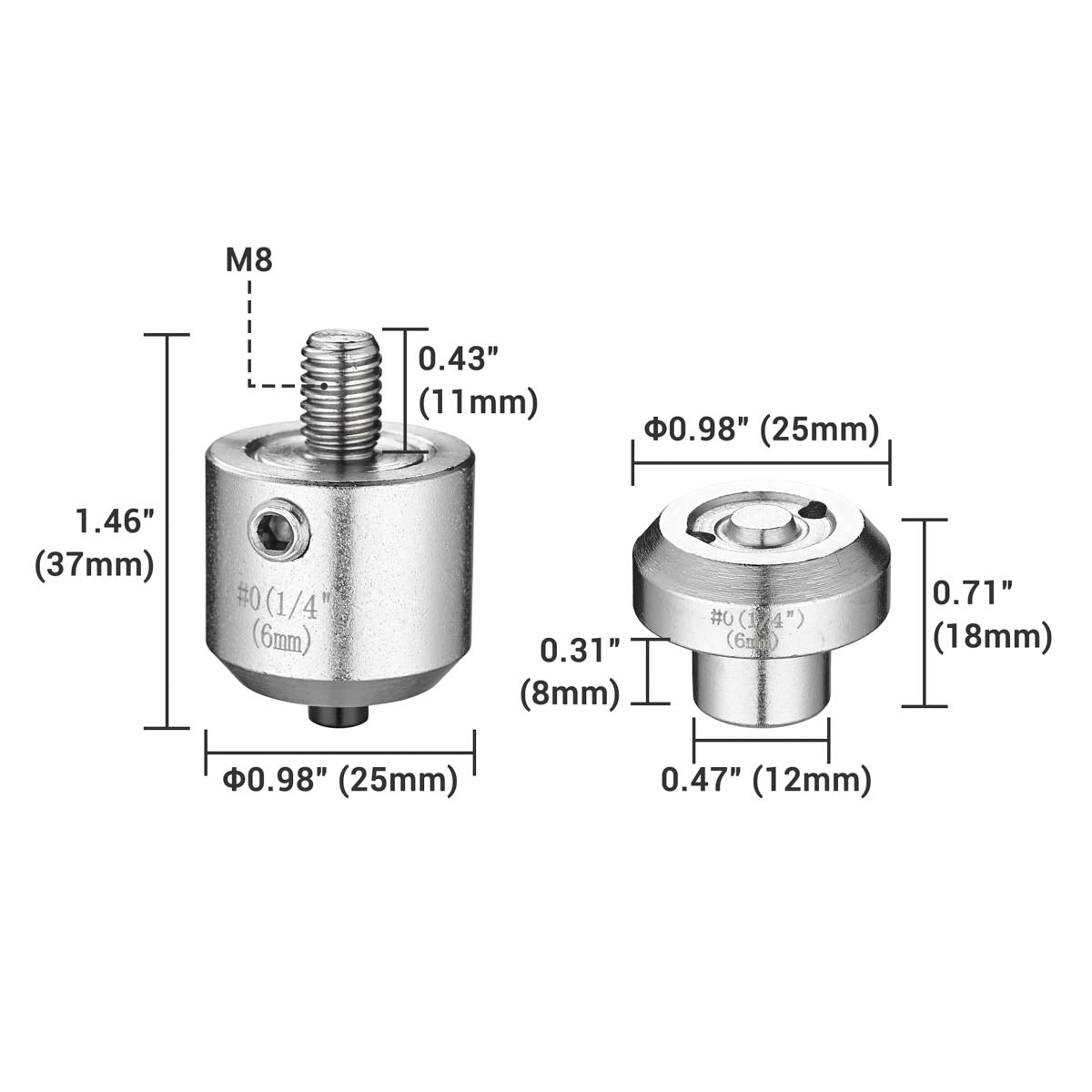

• Size Option #0:
  • Grommet Size: #0 (1/4" / 6 mm)
  • Upper Die (Dia.×H): 0.98" x 1.46" (25 x 37mm)
  • Lower Die (Dia.×H): 0.98" x 0.71" (25 x 18mm)
  • Net Weight: 0.26 lbs

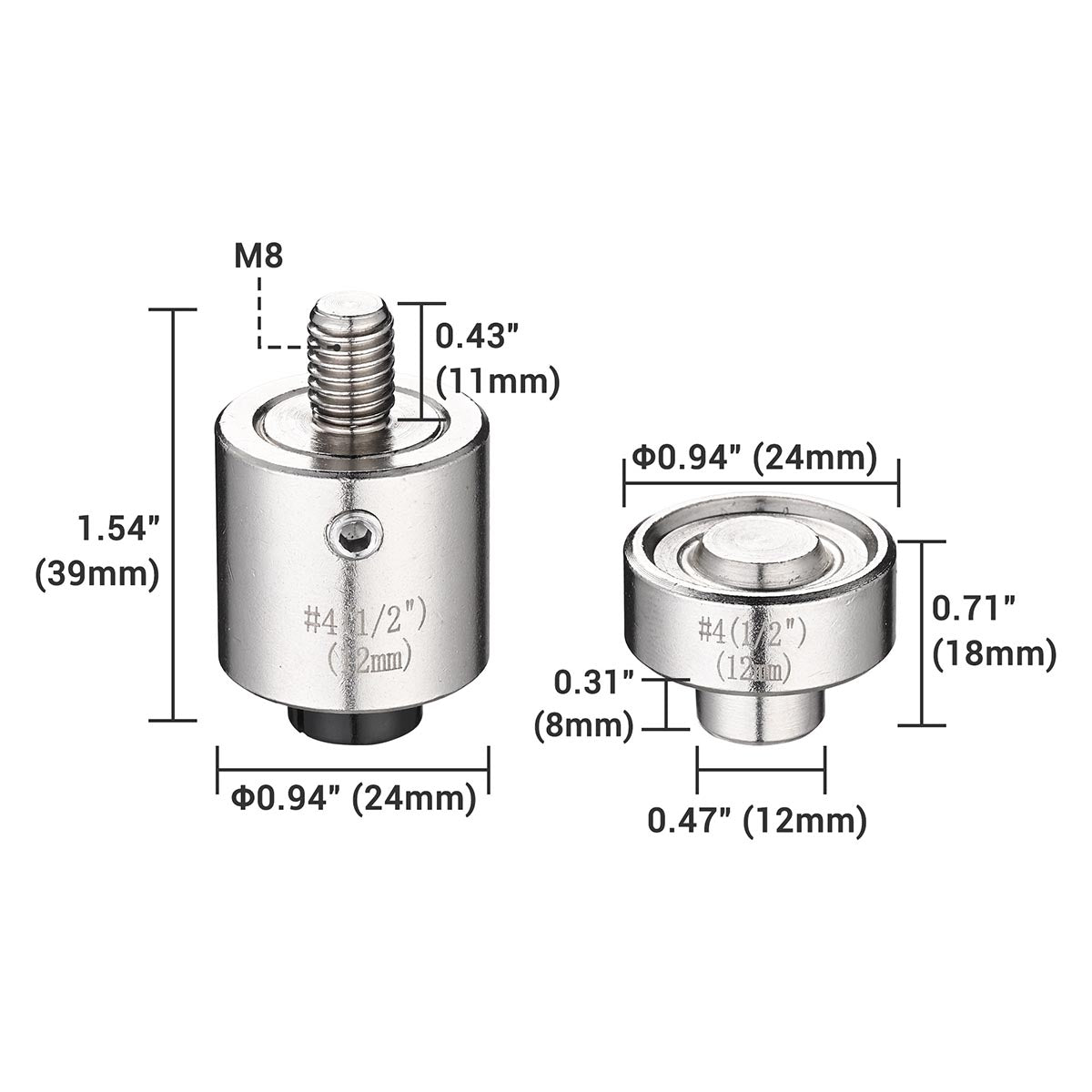

• Size Options #2 or #4:

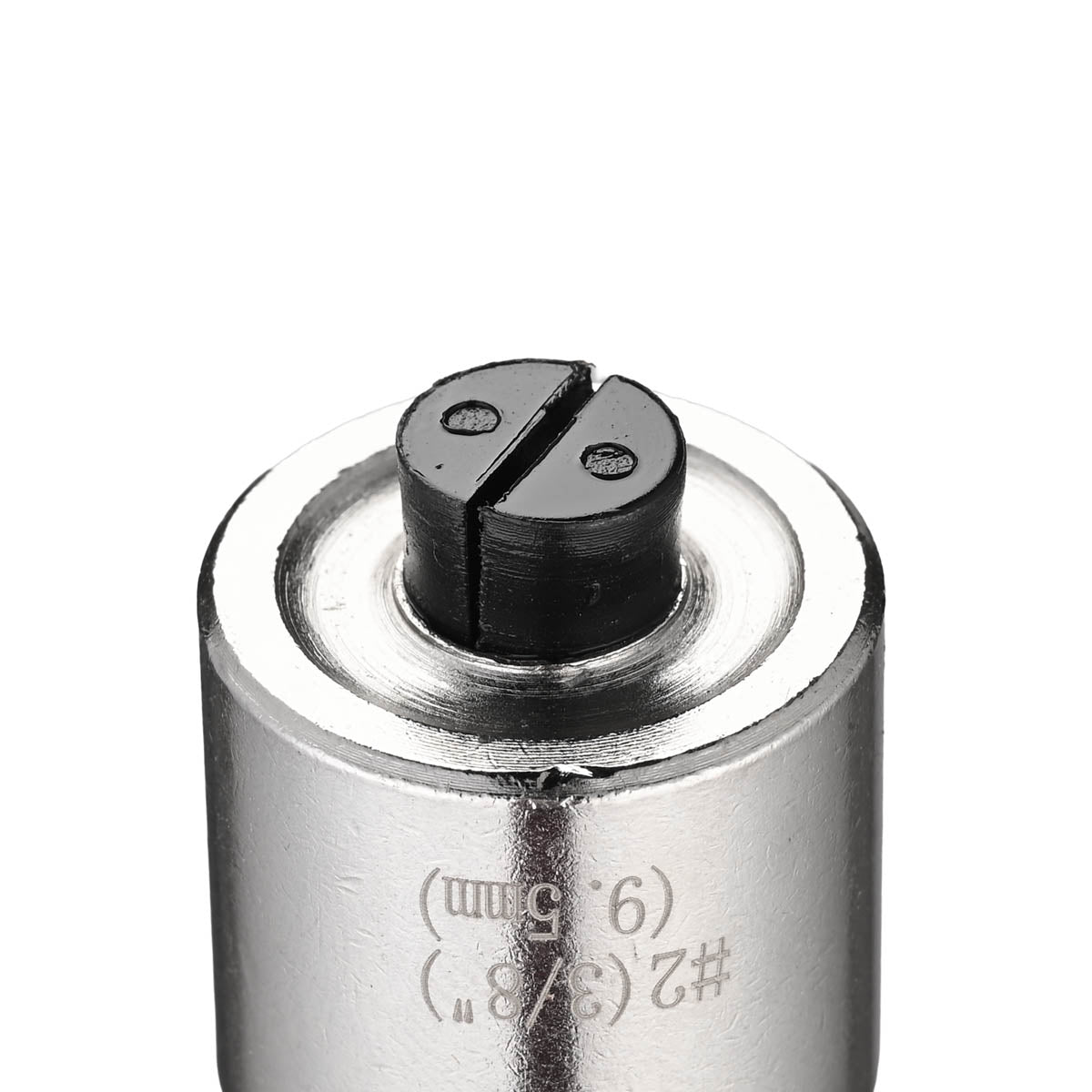

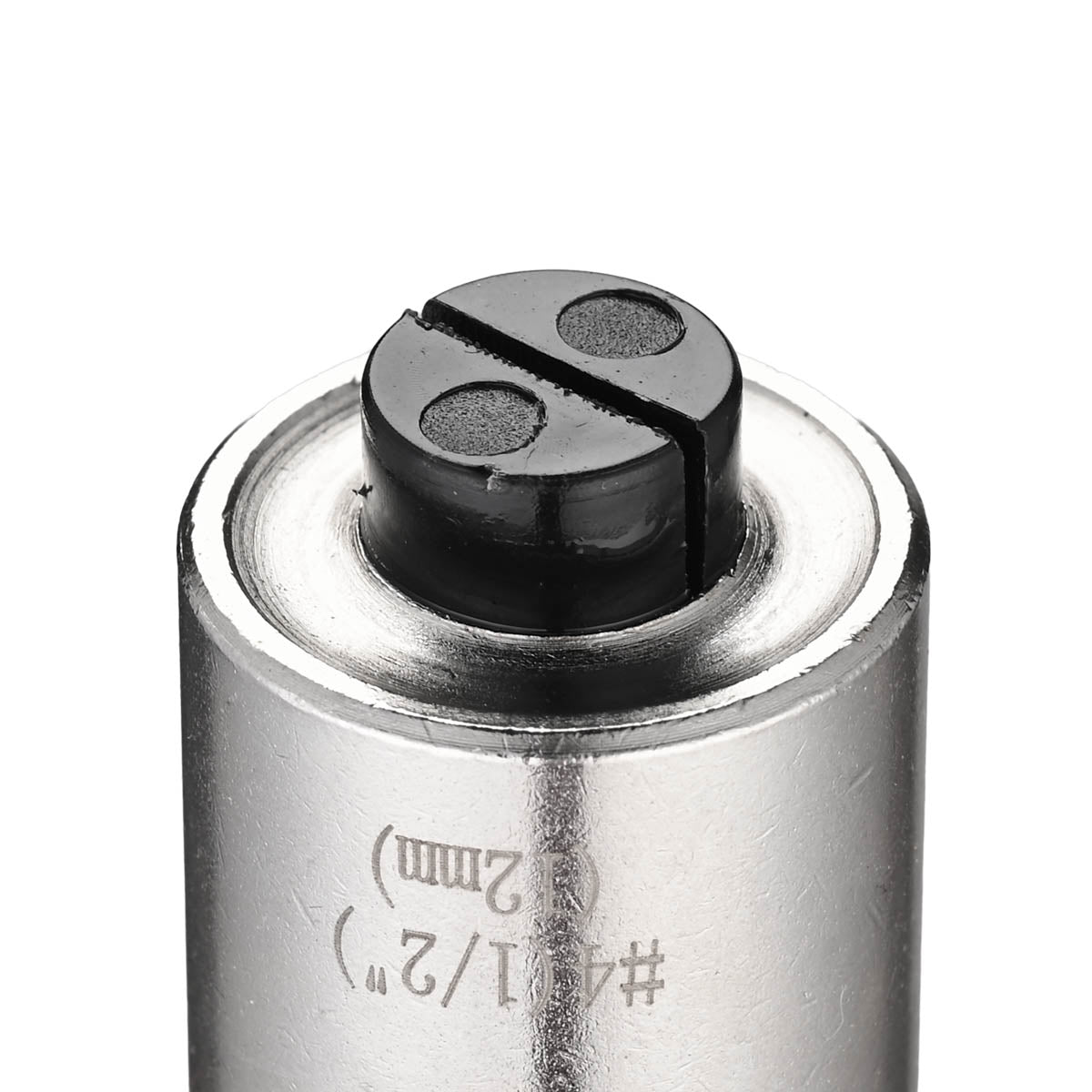

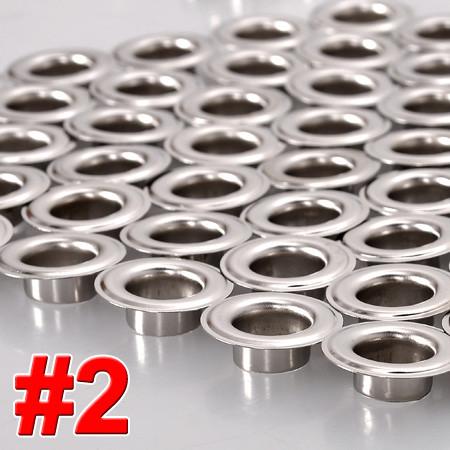

  • Grommet Size: #2 (3/8" / 9.5 mm) | #4 (1/2" / 12 mm)
  • Upper Die (Dia.×H): 0.94" x 1.54" (24 x 39mm)
  • Lower Die (Dia.×H): 0.94" x 0.71" (24 x 18mm)
  • Net Weight: #2 (0.29 lbs) | #4 (0.31 lbs)

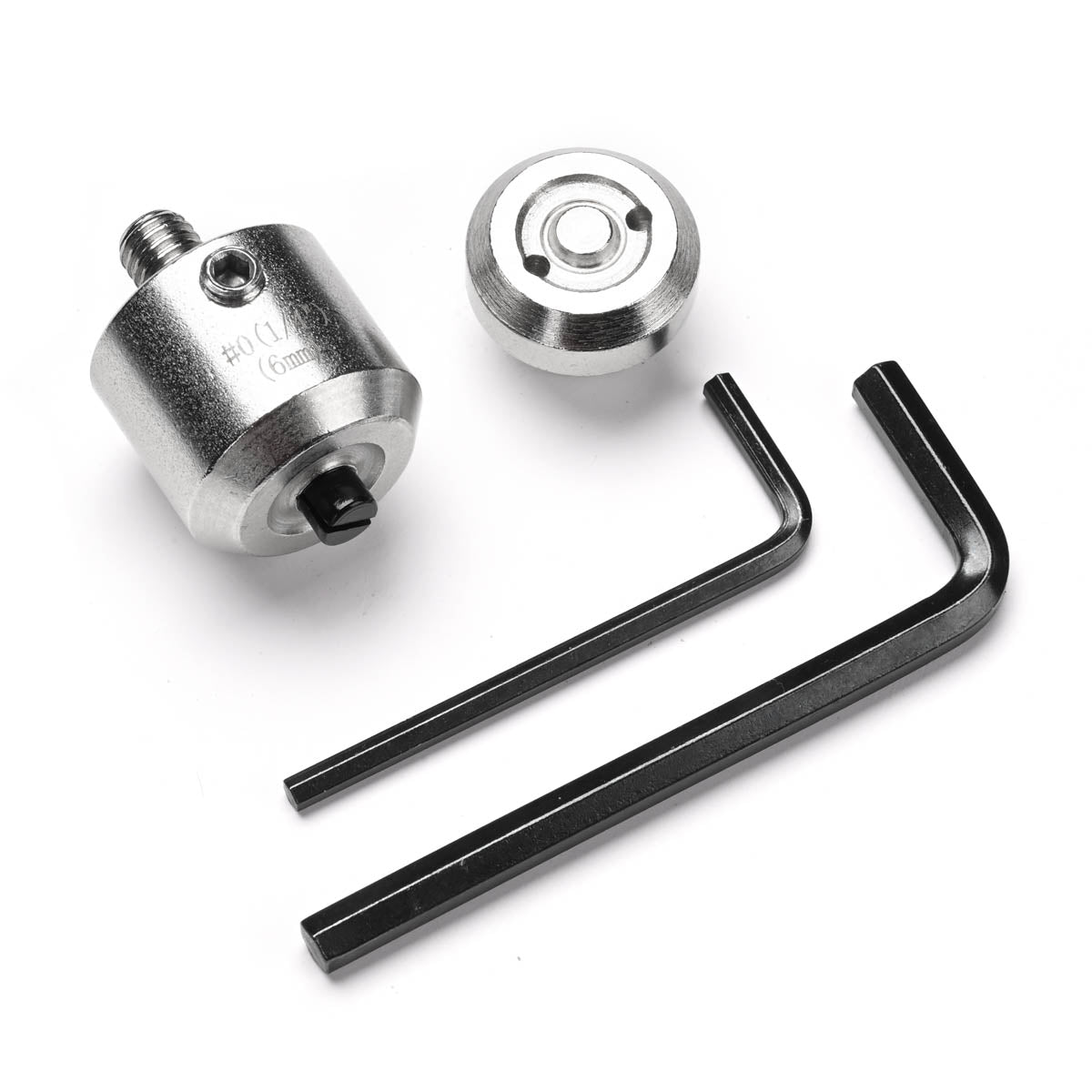

Package Includes:

• 1x Upper Die
• 1x Lower Die
• 1x 3 mm Hex Wrench
• 1x 5 mm Hex Wrench
