TheLAShop U Bolt Wire Rope Clips 18ct. Stainless Steel

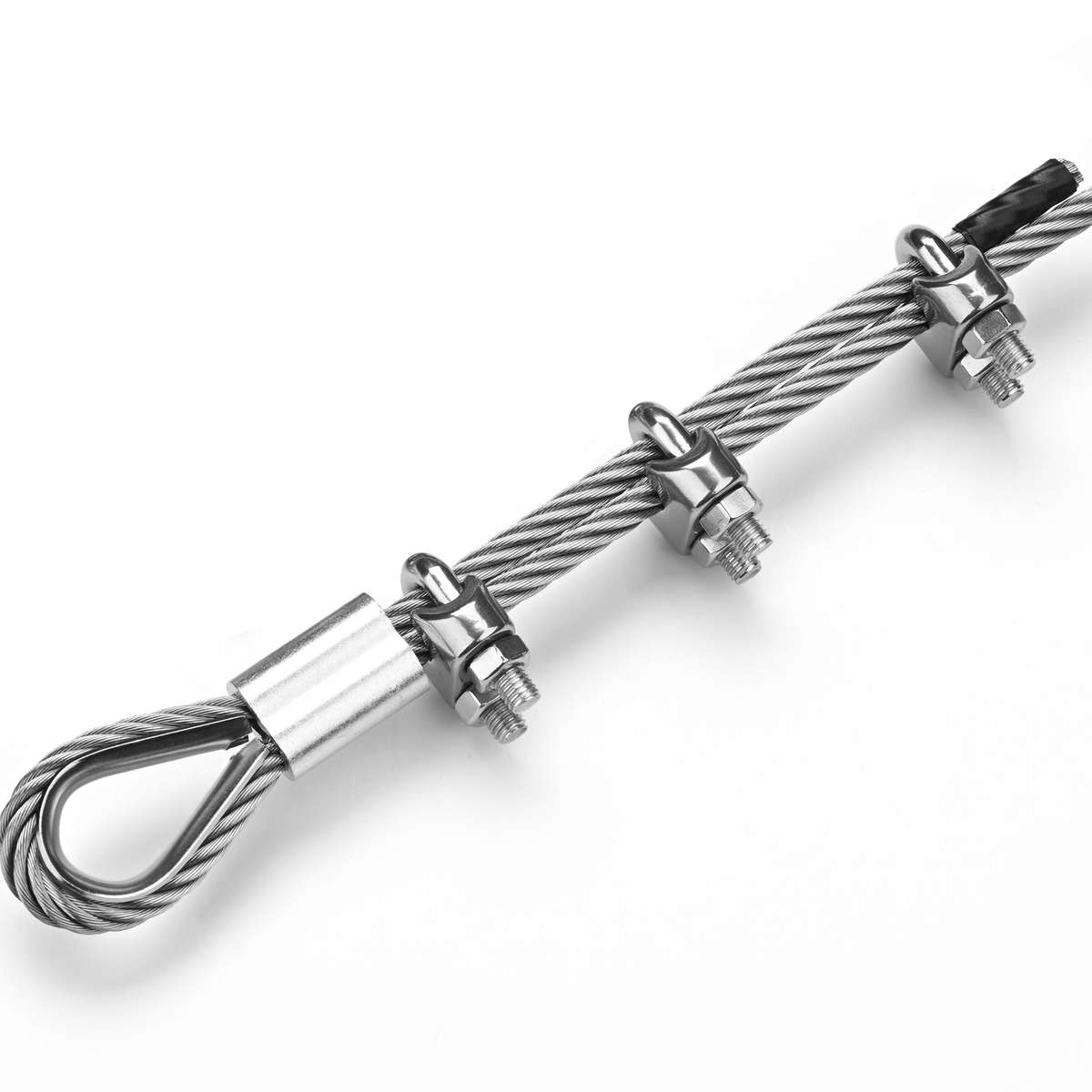

Engineered for firm cable clamping and reliable line terminating, these 304 Stainless Steel U-Bolt Wire Rope Clips form dependable loop ends for wire ropes, deck cable railings, and outdoor hanging systems. Offered in M3 and M5 options, each set delivers rugged clamping strength tailored to your cable gauge—providing a snug grip for 1/8" ropes with M3 or 3/16" ropes with M5. Depending on your project requirements, team the M3 clips with our 1/8" 316 stainless steel cable, or choose the larger M5 version for heavier-duty applications using 3/16" wire ropes (sold separately). Intended for rigging and static binding only; do not use for overhead lifting.

Features:

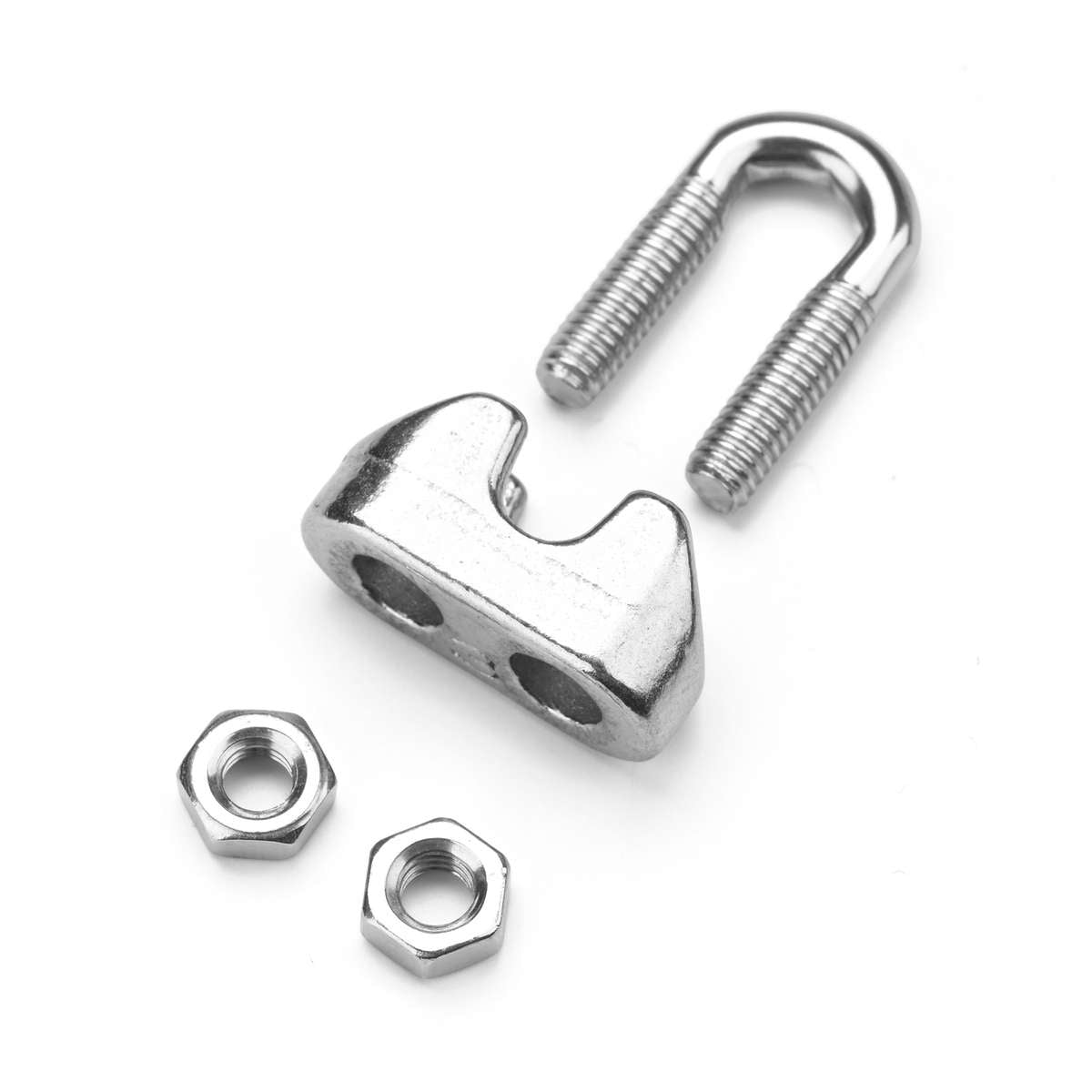

• Firm Non-Slip Clamping: Features precision-threaded U-bolts coupled with forged saddle bases to squeeze steel cables securely, stopping slip under tension.
• Corrosion-Resistant 304 Alloy: Built from marine-grade 304 stainless steel to guard against rust, salt spray, and outdoor wear, ideal for wet or coastal installations.
• Proportioned Saddle Channel: Designed with clean inner contours (0.22" groove diameter for M3 / 0.24" for M5) to seat wire strands smoothly without crushing individual wires.

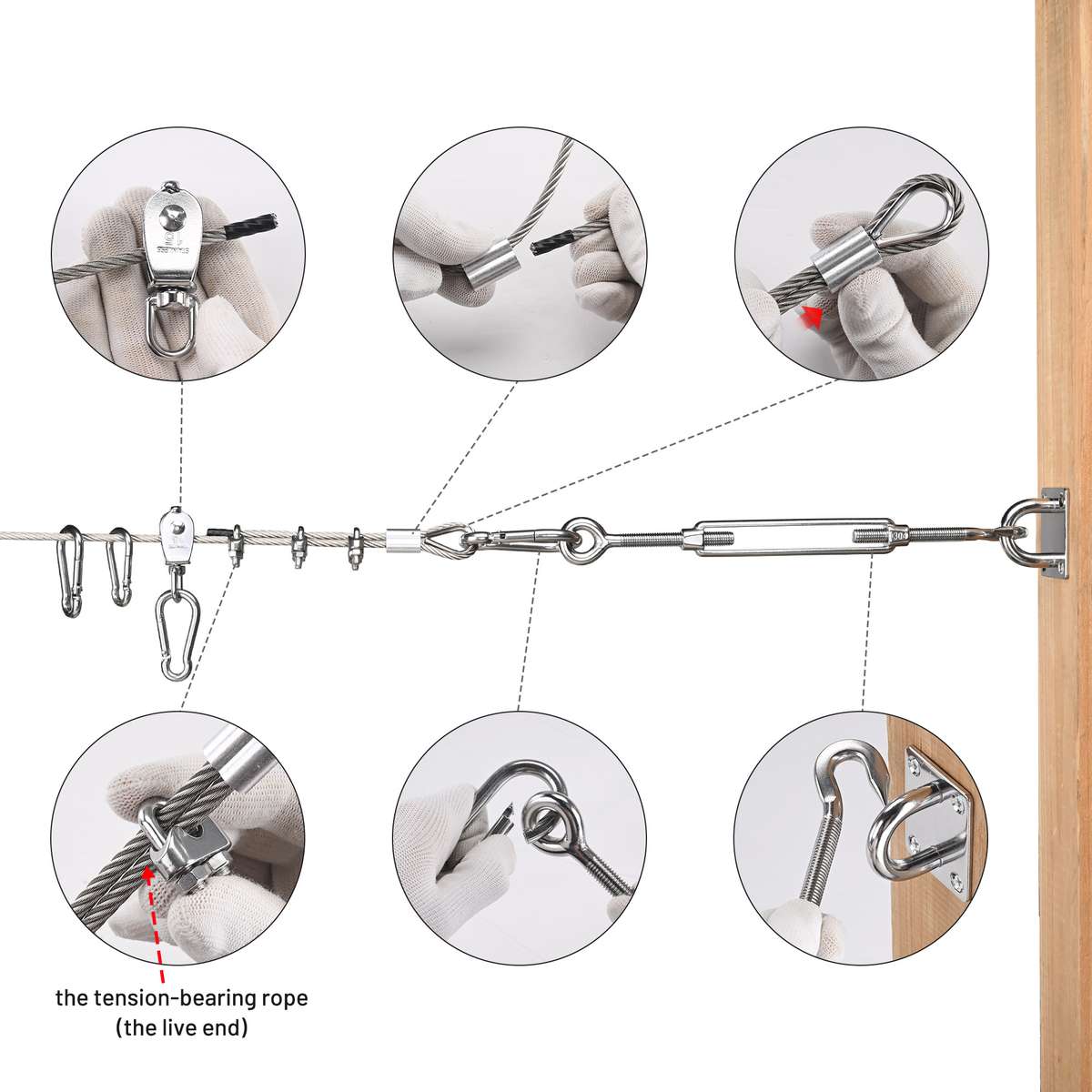

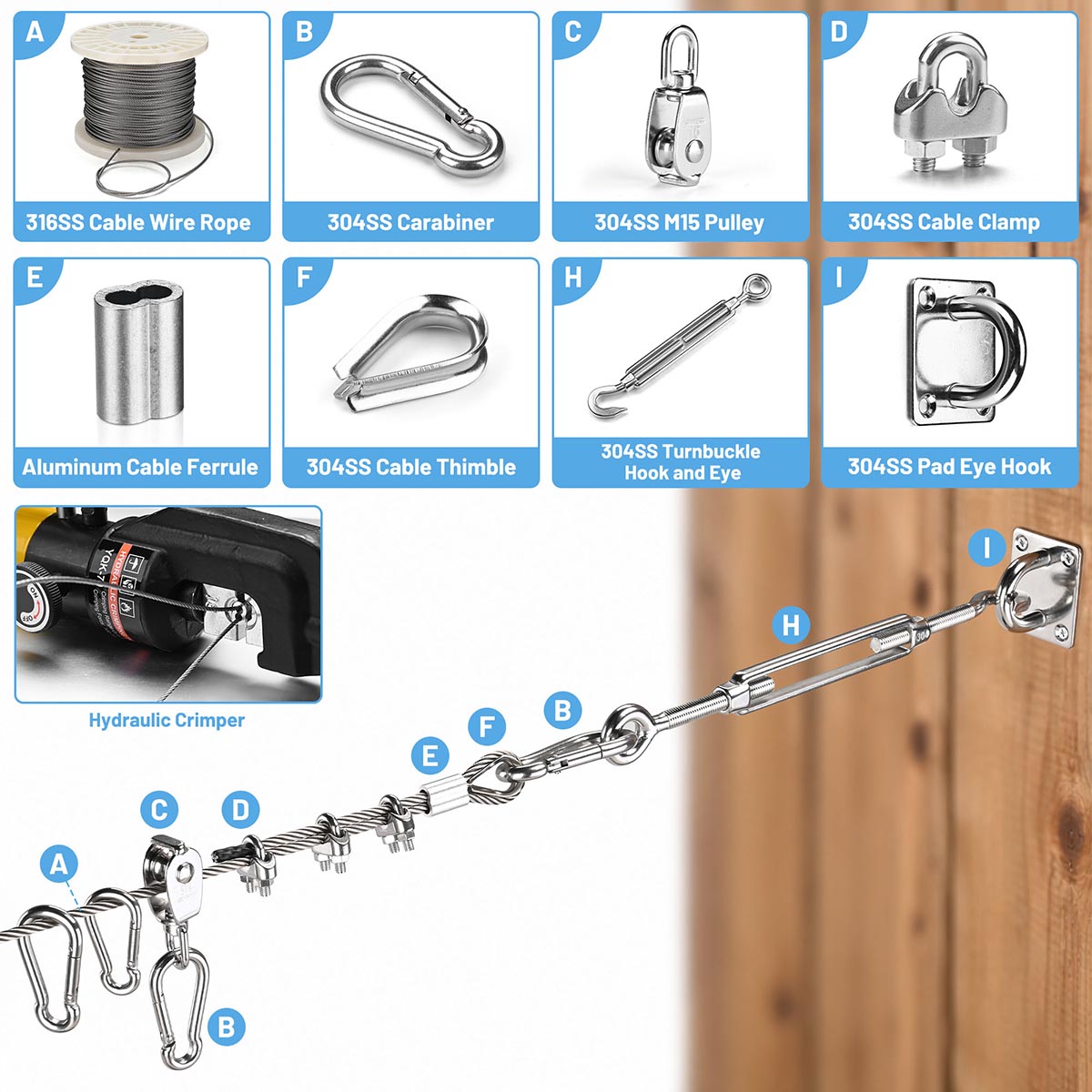

• Broad Application Range: Great for anchoring shade sail corners, putting together cable railings, guiding clotheslines, and fixing temporary guy wires.

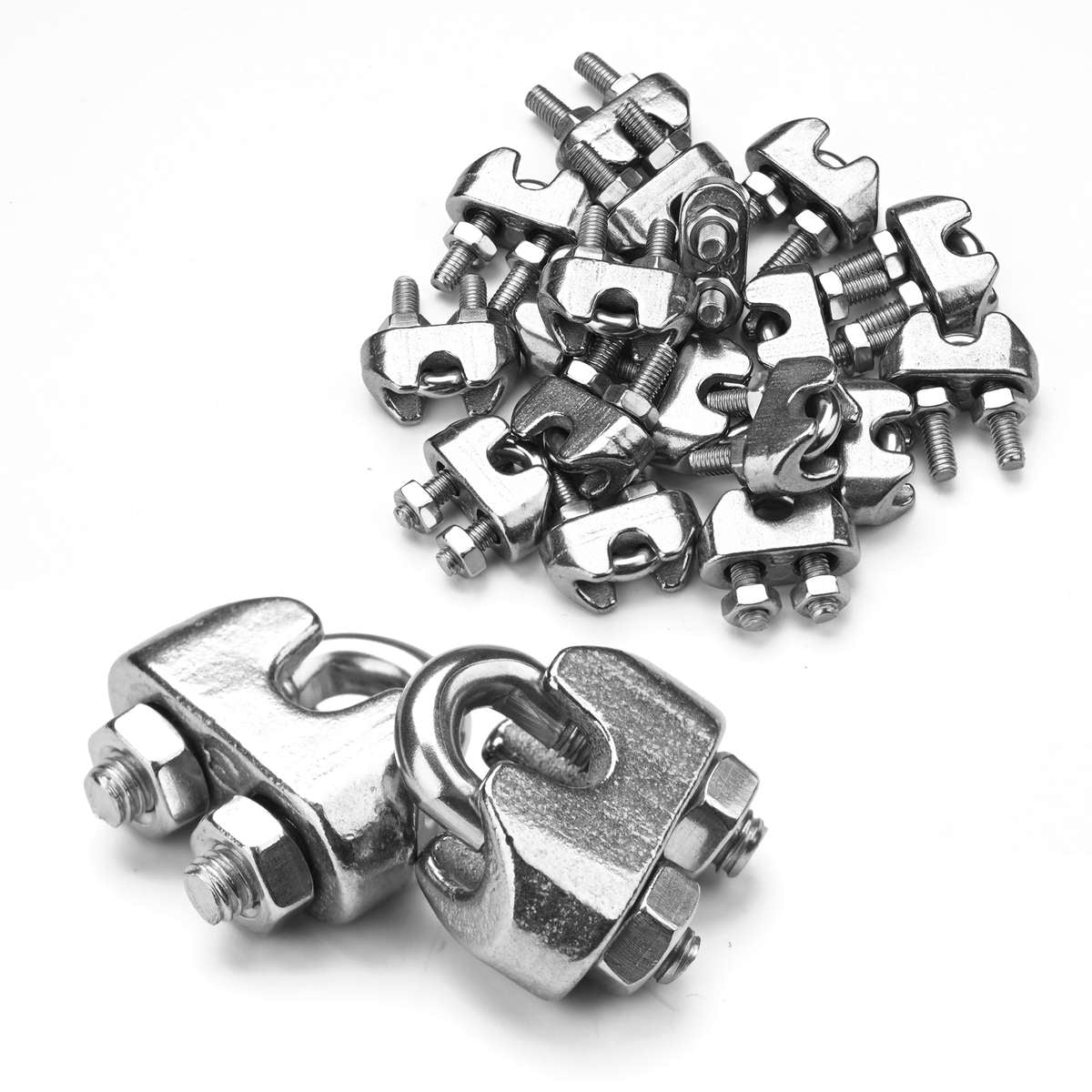

• Convenient Bulk Pack: Packed with 18 matching clamps per set, providing plenty of hardware to tackle complete railing sections or multi-point tie-downs.

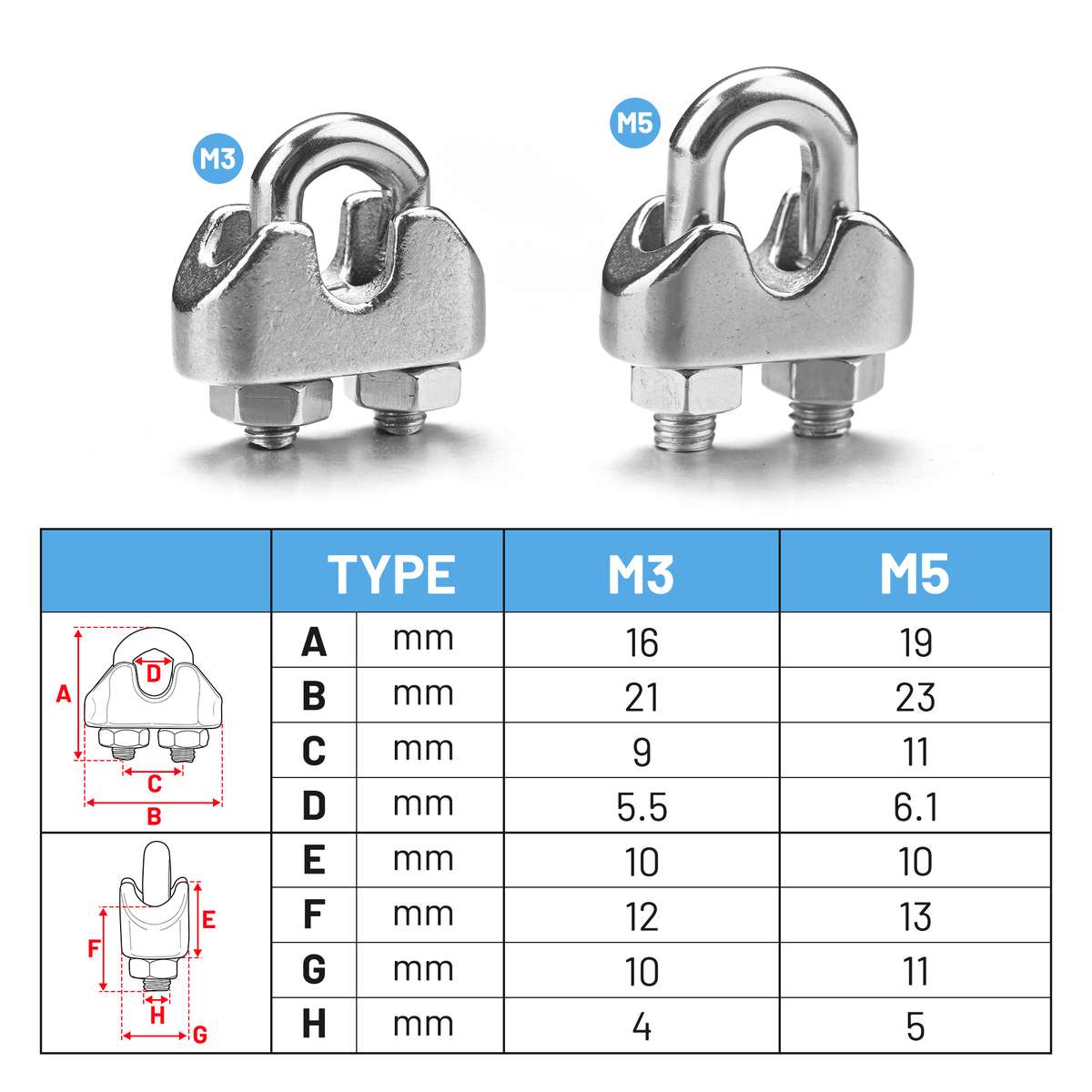

Specifications:

• Material: 304 Stainless Steel
• Color: Silver
• Quantity Per Pack: 18 Pieces

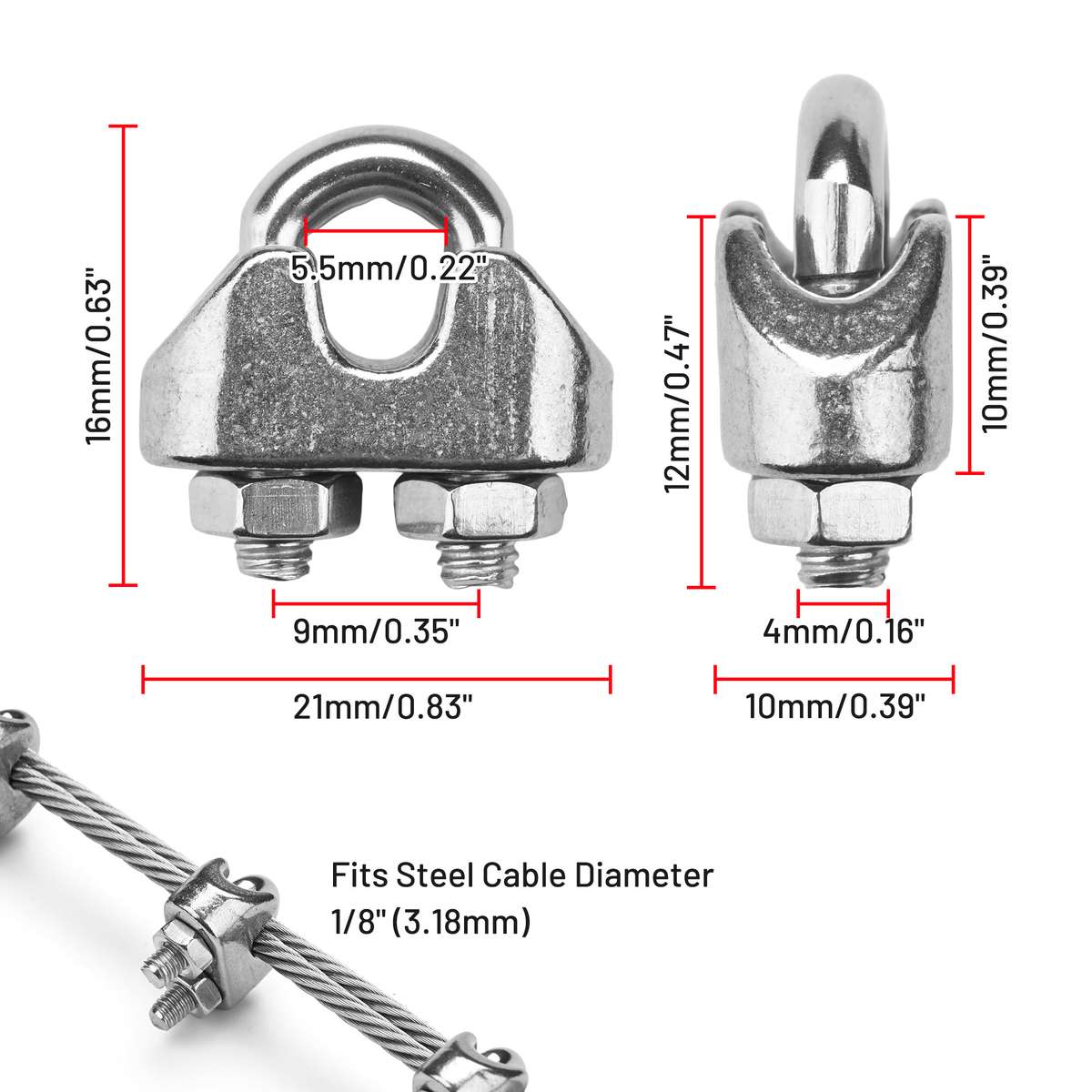

• M3 Option Specifications:
  • Product Type: M3 Wire Rope Clamp
  • Compatible Cable Diameter: Fits 1/8" (3.18 mm) Wire Ropes
  • U-Groove Inner Width: 0.22" (5.5 mm)
  • Saddle Base Size (A x B): 0.35" x 0.39" (9 x 10 mm)
  • Overall Dimension (C x F x G): 0.47" x 0.83" x 0.63" (12 x 21 x 16 mm)
  • Thread Diameter (D) & Leg Clearance (E): D: 0.16" (4 mm) / E: 0.39" (10 mm)

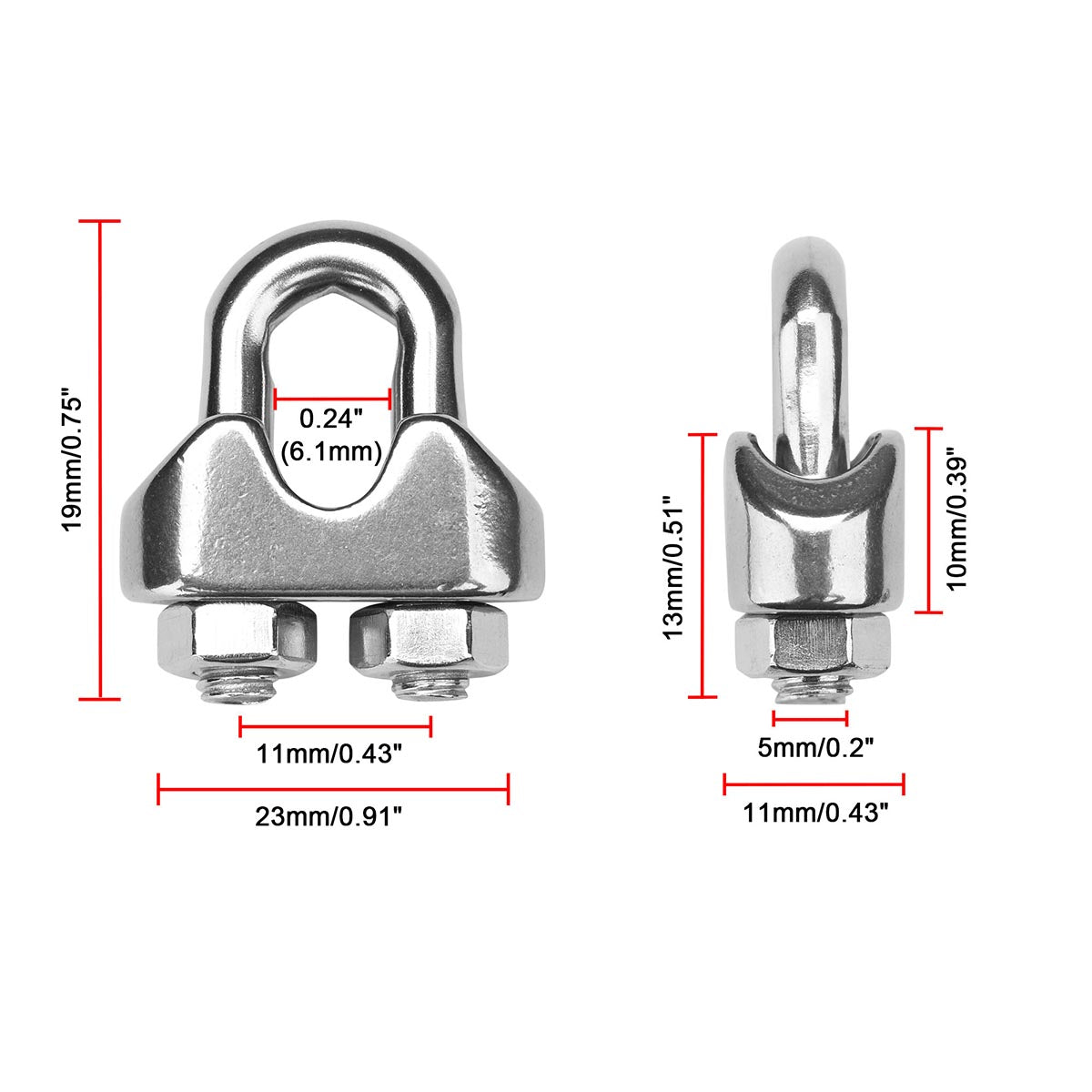

• M5 Option Specifications:
  • Product Type: M5 Wire Rope Clamp
  • Compatible Cable Diameter: Fits 3/16" Wire Ropes
  • U-Groove Inner Width: 0.24" (6.1 mm)
  • Saddle Base Size (A x B): 0.43" x 0.43" (11 x 11 mm)
  • Overall Dimension (C x F x G): 0.51" x 0.91" x 0.75" (13 x 23 x 19 mm)
  • Thread Diameter (D) & Leg Clearance (E): D: 0.20" (5 mm) / E: 0.39" (10 mm)

Package Includes:

• 18x Stainless Steel Cable Clamps (M3 or M5, based on selected option)
